Whirlpool DP1040XTXQ6 Parts List

Popular Searches: (Click to search)    2oz  also  assembly  black  door  drain  element  fastener  heater  includes  item  lower  paint  pressurized  pump  rack  seal  spray  touch  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper And Lower Rack And Track Parts

10 - Lower Washarm Parts

11 - Cabinet Parts

12 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper And Lower Rack And Track Parts 10 - Lower Washarm Parts 11 - Cabinet Parts 12 - Optional Parts (not Included)

02 - Control Panel And Latch Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10428181	Console Asm. (black)	$80.80 Special Order
	W10290162	Console Asm. (white)	$119.00 Special Order
2	WPW10274880	Switch, Door   (Replaces: W10274880)	$48.80  In-Stock Retail: $47.52
3	WP3400412	Screw	$4.50 Special Order
4	WPW10372484	Brace, Control Connector	$12.00 Special Order
5	WP8524472	Actuator, Latch (Replaces: 8524472)	$60.10 Special Order
6	W10783730	Box, Connector   (Replaces: W10401190)	$16.80 Special Order
7	WPW10348413	Screw	$4.70  In-Stock Retail: $4.51
8	WP8534984	Handle (black) (Replaces: 8534984)	$70.70  In-Stock Retail: $68.97
	WP8534985	Handle (white) (Replaces: 8534985)	$70.70  In-Stock Retail: $68.95
9	WPW10274884	Bolt, Latch (Replaces: W10274884)	$67.00  In-Stock Retail: $65.27

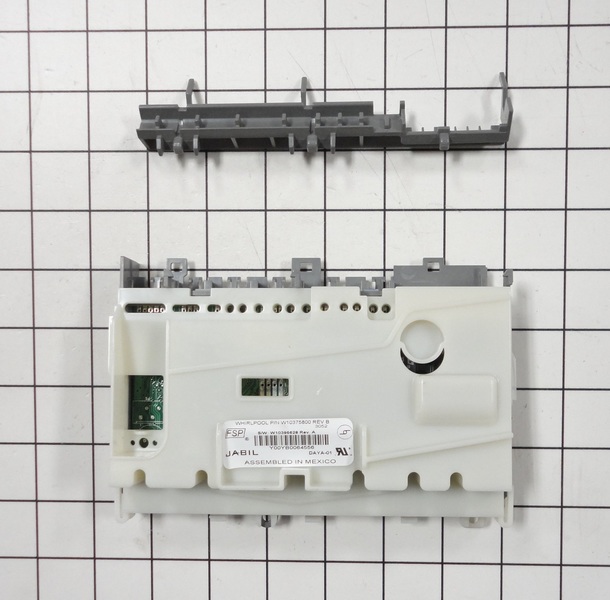

10	W10440230	Control, Electronic	$71.50 Special Order
