3 - Body Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
20	WB02T10194	Bracket Capacitor	$10.50 Special Order
66	WB34T10127	Enclosure Rangetop	Call for Availability
94	WB02T10463	Brace Chassis Radiant Rt	$16.90 Special Order
	WB34X26004	Brace Chassis Radiant Lt	$14.50 Special Order

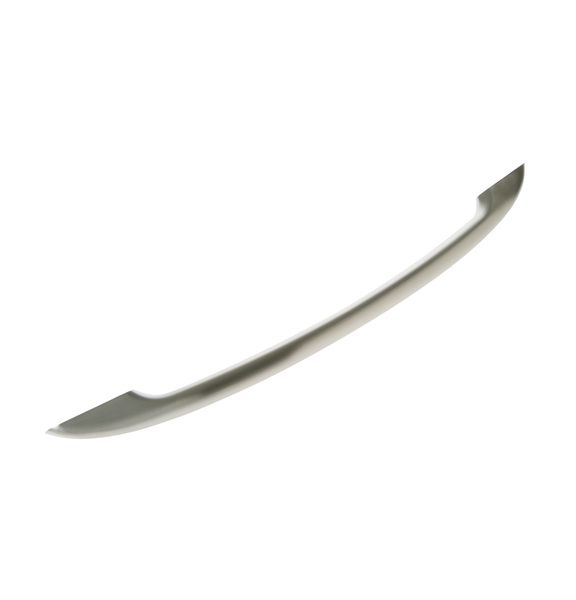

136	WB15T10193	Handle 30 Asm Door	$203.90 Special Order
	WB15T10190	Handle 30 Asm Drawer	$199.20 Special Order
143	WB02T10065	Spacer Dr Hdl	$6.60 Special Order
201	NLA ITEM	Body Oven Weld Asm	Call for Availability
202	WB63T10096	Frame Front	Call for Availability
203	WB63T10147	Back Main	Call for Availability
204	WB55T10178	Drawer Body Asm Mech	$151.70 Special Order
217	WB34T10128	Cover Back	$50.30 Special Order
219	NLA ITEM	Recepticle Cover	Call for Availability
221	WB56X28881	Panel Side (bk)	$74.40 Special Order
222	NLA ITEM	Panel Drawer Asm	Call for Availability
229	WB35T10017	Vent Tube Insulation	$10.50 Special Order
231	WB35T10211	Insulation Oven	$135.60 Special Order
232	NLA ITEM	Ovn Back/btm Insulation	Call for Availability
233	NLA ITEM	Hidden Bake Insulation	Call for Availability
241	WB48T10082	Rack Oven (sc)	$70.30 Special Order
242	WB48T10068	Wedge Drawer	$24.30 Special Order
251	WB44T10104	Unit Asm	$101.50 Special Order
252	WB44T10094	Unit Broil Asm	$89.90 Special Order
253	WB21X22134	Sensor Asm (Replaces: WB21T10007)	$24.20  In-Stock Retail: $23.55
254	WB17T10011	Terminal Block Asm (Replaces: WB17T10012)	$60.40  In-Stock Retail: $58.87
255	WB07T10517	Trim Latch	$17.60 Special Order
257	WB08T10023	Lamp Halogen Lwr (Replaces: WB08T10007)	$21.10  In-Stock Retail: $20.58
258	NLA ITEM	Halogen Lamp Asm Lwr	Call for Availability
259	WB25T10013	Ov Lamp Lens Lwr	$8.50 Special Order
261	WB24T10147	Switch Spdt High Amp	$18.50  In-Stock Retail: $17.96
266	WB63X28540	Base Rivet Asm	$131.30 Special Order
268	WB02T10415	Bracket Anti-tip Asm	$37.30 Special Order
269	WB17T10021	Mount Terminal Block	$21.00 Special Order
272	WB02T10034	Side Support Panel	$10.50 Special Order
273	NLA ITEM	Probe Cover	Call for Availability
277	WB10T10068	Hinge Receiver	$37.30 Special Order
280	WB20T10024	Probe Thermistor	$61.20 Special Order
282	WB38X33648	Vent Tube Asm	$17.20 Special Order
283	WB28T10217	Tube Vnt Radiant	$62.00 Special Order
292	WB02X33180	Rear Drawer Support (Replaces: WB48T10030)	$10.50 Special Order
293	WB48T10013	Frt Drawer Support	$10.50 Special Order
296	WB02X10521	Leg Leveler	$17.10 Special Order
472	WB49T10007	Side Reflector	$27.60 Special Order
489	WB02T10509	Pan Reflector	$67.70 Special Order
578	WB27T10662	Capacitor Motor	$10.30 Special Order
594	NLA ITEM	Receptacle Jack	Call for Availability

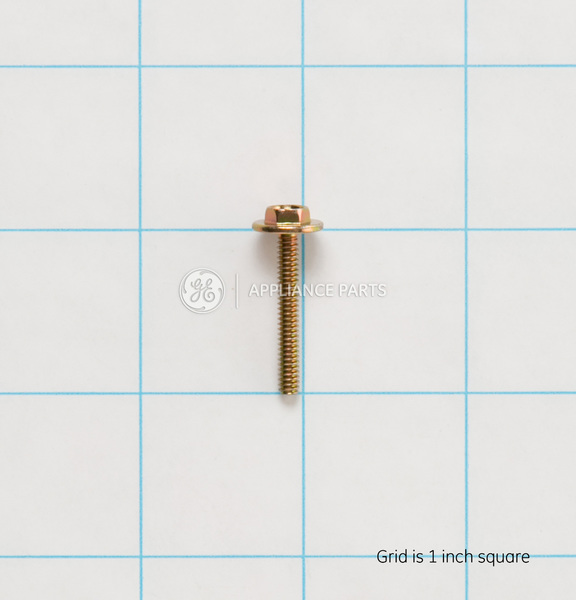

752	WB1K5200	Screw	$10.50 Special Order
755	WD2X430	Screw 8-18 5/16 Ph	$10.50 Special Order
760	WB1X536	Screw	$12.00  In-Stock Retail: $11.66
761	NLA ITEM	Scr 6-32 X1 Hex	Call for Availability
801	WB1M1	Screw	$10.10  In-Stock Retail: $9.83
806	WB1X5364	Screw (cr)	$10.50  In-Stock Retail: $10.22
809	WB1X1137	Screw	$10.50 Special Order
810	WB01T10072	Scr 10-16 Ab Ihw .625 Ni	$10.50 Special Order
875	WH2X930	Screw 8-18 Ab Hxw 3/8	$10.50 Special Order
935	WB01T10112	Washer Alum Shaped	$9.80 Special Order
942	WB1X5573	Washer	$10.50 Special Order
995	WB18T10470	Lead Wire 14 Ga Gn	$10.50 Special Order
	WB18T10471	Harness Wire (hb)	$18.50 Special Order
998	WB1X5572	Nut	Call for Availability
1002	WB01T10017	Scr 8-18 Ab Ihw 3/8 S Ns	$10.50 Special Order
1004	WH2X941D	Scr 8-15 A Hxw 7/8 S	$27.60 Special Order
1005	WB01T10008	Scr 10-32 Tr T	$10.50 Special Order
