GE DPVH880GJ0WW Parts List

Popular Searches: (Click to search) bearing blower control detector door drum flame green inlet retainer ring rods safety screw sensor sleeve slide switch thermostat wheel

Select a Diagram

1 - Controls & Backsplash

2 - Front Panel

3 - Door

4 - Cabinet

5 - Blower & Drive Assembly

6 - Drum

7 - Gas Valve & Burner Assembly

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
235	WE2X263D	Screw (Replaces: WE2X263)	$17.10 Special Order
237	WD02X10057	Screw (Replaces: WE2M154)	$10.50 In-Stock Retail: $10.22
501	WE11M34	Calrod Element	$150.60 Special Order
502	WE2M174	Screw #10	$10.50 Special Order
503	NLA ITEM	Drum Asm Ss 7.5"	Call for Availability
504	NLA ITEM	Deflector Drum Heat	Call for Availability
506	NLA ITEM	Hi-limit Thermostat	Call for Availability
507	WE4M398	Inlet Control Thermostat	$38.90 In-Stock Retail: $37.92
508	WE3M33	Shaft & Bracket Ass'y	$31.50 In-Stock Retail: $30.64
509	WE14M128	Baffle Drum	$65.90 Special Order
513	NLA ITEM	Hang Dry Baffle Asm	Call for Availability
514	NLA ITEM	Baffle And Screen Asm	Call for Availability
515	WE1M1015	Ground Strap	$13.80 Special Order
522	WE1M821	Dampening Band - Drum	$124.30 Special Order
523	NLA ITEM	Washer Damp. Band	Call for Availability

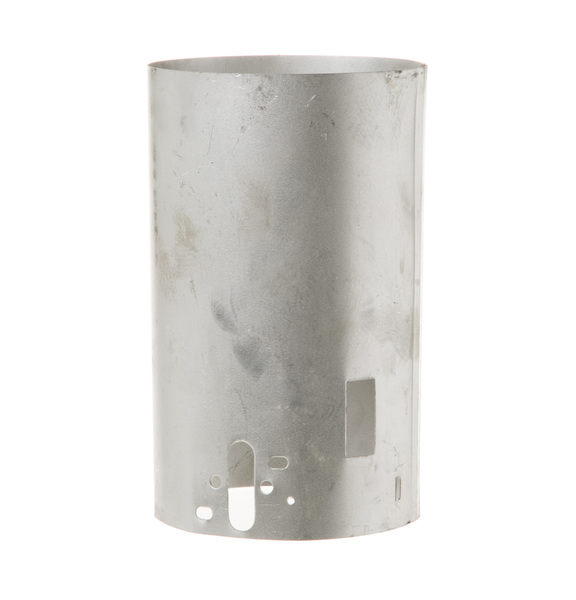

526	WE14M133	Combustion Chamber	$31.80 Special Order
527	NLA ITEM	Tranisition Duct	Call for Availability
530	WE4M80	Inlet Safety Thermostat (Replaces: WE4M424)	$38.20 In-Stock Retail: $37.25
532	WE11X29443	Diffuser Duct Gas	$58.70 In-Stock Retail: $57.21
533	WE1M822	Plate Diffuser Gas	Call for Availability
534	WE2M163	Screw #10	$10.50 In-Stock Retail: $10.22
552	WE4X448	Flame Detector	$87.60 In-Stock Retail: $85.44
3102	WE1M300	Bearing Retainer	$35.90 In-Stock Retail: $34.94
3106	WE1M462	Sleeve, Drum Bearing	$13.80 In-Stock Retail: $24.48
3127	WE1M461	O-ring	$10.50 In-Stock Retail: $10.22
