GE JGBP85DEM3BB Parts List

Popular Searches: (Click to search)    blk  bracket  burner  ckt  electrode  glowbar  gray  0  asm  bake  cap  igniter  knob  med  medium  minivalve  oven  sensor  small  top


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

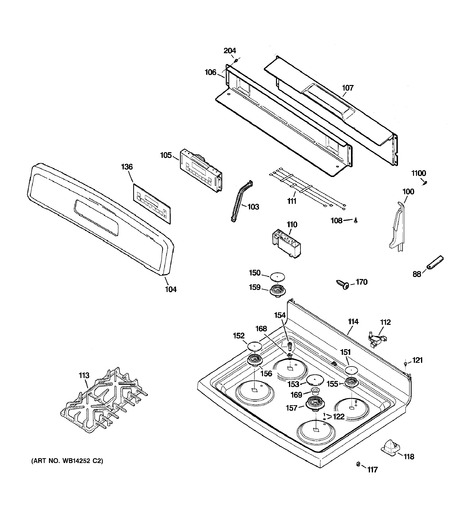

2 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
88	NLA ITEM	Pad Felt (wh)	Call for Availability
	NLA ITEM	Pad Felt (2")	Call for Availability
	WB2K64	Pad Felt (bk)	$9.80 Special Order
100	NLA ITEM	End Support	Call for Availability
	NLA ITEM	End Support Rt Bsq	Call for Availability
	NLA ITEM	End Support	Call for Availability
	NLA ITEM	End Support Lf Bsq	Call for Availability
	NLA ITEM	End Support Rt Wh	Call for Availability
	NLA ITEM	End Support Lf Wh	Call for Availability
103	NLA ITEM	Bracket Control	Call for Availability
104	NLA ITEM	Trim Control	Call for Availability
	NLA ITEM	Trim Control	Call for Availability
	NLA ITEM	Trim Control	Call for Availability
105	NLA ITEM	T011 Oven Control	Call for Availability
106	NLA ITEM	Cover Back Upper	Call for Availability
107	NLA ITEM	Cover Back Lower	Call for Availability
108	WB1X5364	Screw (cr)	$10.50  In-Stock Retail: $10.22
110	WB13K10029	Spark Module 4+0	$60.10 Special Order
111	WB18K10035	Harness Hv	$38.90  In-Stock Retail: $37.92
112	WB14K10003	Hinge Range Top	$10.50 Special Order
113	WB31K10137	Grate Cast (dd) Lf	Call for Availability
	WB31K10133	Grate Cast (dd) Lf	$173.60 Special Order
	NLA ITEM	Grate Cast (dd) Rt	Call for Availability
	WB31K10135	Grate Cast (dd) Lf	$140.20 Special Order
	NLA ITEM	Grate Cast (dd) Rt	Call for Availability
	NLA ITEM	Grate Cast (dd) Rt	Call for Availability
114	WB62K10087	Rangetop & Brkt Asm	Call for Availability
	NLA ITEM	Rangetop & Brkt Asm	Call for Availability
	WB62K10090	Rangetop & Brkt Asm	$123.00 Special Order
117	WB14K10004	Pin Locator	$10.50 Special Order
118	WB14K10005	Pin Locator	Call for Availability
121	WB1K5119	Screw	$10.50 Special Order
122	WB01K10008	Screw Cktp	Call for Availability
136	WB27K10278	Overlay T011	$61.50 Special Order
	WB27K10280	Overlay T011	$16.00 Special Order
	NLA ITEM	Overlay T011   (Replaces: WB27K10261)	Call for Availability
150	WB29K10004	Cap-burner Med (gray)	$38.80  In-Stock Retail: $37.79
	WB29K10001	Cap-burner Med (blk)	$55.50  In-Stock Retail: $60.65
	NLA ITEM	Cap-burner Med Taupe	Call for Availability
151	WB29K10009	Cap-burner Small (blk)	$10.80 Special Order
	NLA ITEM	Cap-burner Small Taupe	Call for Availability
	WB29K10002	Cap-burner Small (gray)	$42.80  In-Stock Retail: $41.66
152	WB29K10007	Cap-burner Large (gray)	$43.60 Special Order
	WB29K10006	Cap-burner Large (blk)	$101.40  In-Stock Retail: $98.85
	WB29X36765	Cap-burner Large Taupe	$24.30 Special Order
153	NLA ITEM	Cap Burner Asm (15k)	Call for Availability
	NLA ITEM	Cap Burner Asm (15k)	Call for Availability
	WB28K10213	Cap Burner Asm (15k)	Call for Availability
154	WB13K10014	Electrode Top	Call for Availability
155	WB16K10070	Burner-small (Replaces: WB16K10024)	$31.40  In-Stock Retail: $30.59
156	WB16T10046	Burner-large 12k	$40.30  In-Stock Retail: $39.26
157	WB16K10062	Vision Burner Xl	$60.50  In-Stock Retail: $58.95
159	WB16K10055	Burner Medium (9500)	$42.90  In-Stock Retail: $41.82
168	WB01K10112	Clip-electrode (Replaces: WB01K10007)	$10.50  In-Stock Retail: $10.22
169	NLA ITEM	Venturi 15k Lp	Call for Availability
170	WB1X5874	Screw Wh	Call for Availability
	NLA ITEM	Screw (blk)	Call for Availability
204	WZ4X345D	Screw 8-18x5/8 Hxw	$22.70 Special Order
	WB1K5062	Screw (blk) (Replaces: WB1K42)	$10.50 Special Order
1100	WB01T10016	Scr 8-18 Ab Hxw 5/8 S	$10.50 Special Order
