GE JGB290DEN2WW Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    cap  0  150n  bake  bracket  burner  ckt  electrode  front  glowbar  igniter  knob  med  minivalve  orif  oven  small  top  valve  1


Select a Diagram

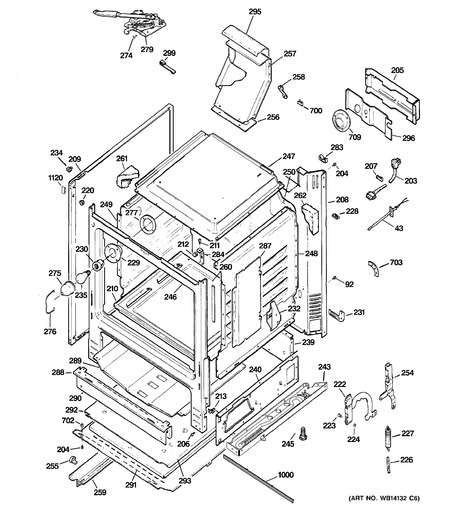

3 - Body Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
43 WB20K10015 WB20K10015 Temperature Sensor Call for Availability
92 WB1X1261 Screw Ground Call for Availability
203 WB18K10036 WB18K10036 Line Cord
(Replaces: WB18K7) 		Call for Availability
204 WZ04X0345 Screw 8-18x5/8 Hxw Call for Availability
WB1K5062 WB1K5062 Screw (blk)
(Replaces: WB1K42) 		Call for Availability
205 NLA ITEM Cover Back Panel Call for Availability
206 WB01K10091 WB01K10091 Screw Call for Availability
207 WB2K36 Clamp Cable Call for Availability
208 WB63K10180 Range Back Call for Availability
209 WB63K10119 WB63K10119 Panel Side Call for Availability
WB63K10122 WB63K10122 Panel Side Wh Call for Availability
210 WB35X37973 Bottom Oven Asm Call for Availability
211 WB1K5 WB1K5 Bottom Oven Screw Call for Availability
212 WB1K2 WB1K2 Speednut Call for Availability
213 WB1K3 WB1K3 Nut Speed Call for Availability
220 WB2K8 WB2K8 Grommet Call for Availability
222 WB10K12 WB10K12 Hinge Asm Guide Call for Availability
223 NLA ITEM Pin Hinge Door Call for Availability
224 NLA ITEM Ring Retaining Call for Availability
226 WB2K11 WB2K11 Hook Door Spring Call for Availability
227 NLA ITEM Spring Door Call for Availability
228 WB2X7066 Clip Wire Call for Availability
229 NLA ITEM Housing Receptacle Call for Availability
230 WB08T10026 WB08T10026 Receptacle Push-in Call for Availability
231 WB2K20 WB2K20 Bracket Asm Anti-tip Call for Availability
NLA ITEM Arm Anti Tip Call for Availability
232 NLA ITEM Hinge Guard Right Call for Availability
NLA ITEM Hinge Guard Left Call for Availability
234 WB2K66 Guide Support Rgtp Call for Availability
235 40A15 40A15 Oven Lamp Call for Availability
239 WB63K10203 WB63K10203 Panel Rear Broil Call for Availability
240 WB63K3 Panel Side Broil Lft Call for Availability
NLA ITEM Panel Side Broil Rt Call for Availability
243 WB63K10232 WB63K10232 Base Support Rt Call for Availability
WB63K10233 WB63K10233 Base Support Lf Call for Availability
245 WB02K10182 WB02K10182 Leg Leveler Call for Availability
246 NLA ITEM Frame Weld Asm Call for Availability
247 WB53K10004 Oven Top Call for Availability
248 WB53K10034 Oven Side Rt Call for Availability
249 WB53K10035 Oven Side Lf Call for Availability
250 NLA ITEM Oven Back Call for Availability
254 NLA ITEM Support Asm Rivet Lf Call for Availability
WB10K10010 Support Asm Rivet Rt Call for Availability
NLA ITEM Screw Mtg Hinge (torx) Call for Availability
255 WB02K10158 WB02K10158 Drawer Support Call for Availability
256 WB32K1 Gasket Vent Call for Availability
257 WB38K10001 Vent Asm Call for Availability
258 WB38K2 WB38K2 Brace Vent Call for Availability
259 WB39K16 WB39K16 Rail Drawer Call for Availability
260 WB32K10037 Gasket Oven Seal Call for Availability
261 NLA ITEM Insulation Oven Wrap Call for Availability
262 NLA ITEM Insulation Oven Back Call for Availability
274 NLA ITEM Screw Latch Call for Availability
275 WB36X192 WB36X192 Glass Oven Lamp
(Replaces: WB8K5) 		Call for Availability
276 WB2K27 WB2K27 Bail Call for Availability
277 NLA ITEM Gasket Oven Light Call for Availability
279 WB10X33060 WB10X33060 Latch Assembly
(Replaces: WB02K10140) 		Call for Availability
283 WB02X21679 WB02X21679 Clip Cable Call for Availability
284 WB2K32 WB2K32 Bottom Oven Brackt Suppo Call for Availability
287 WB34K30 WB34K30 Guard Radiation Rt Call for Availability
NLA ITEM Guard Radiation Lft Call for Availability
288 NLA ITEM Brace Bottom Call for Availability
289 WB34K10086 WB34K10086 Lower Heat Shield Call for Availability
290 NLA ITEM Shield Radiation Call for Availability
291 WB63K16 WB63K16 Guard Bottom Call for Availability
292 NLA ITEM Bottom Inner Guard Call for Availability
293 WB63K18 Guard Bottom Middle Call for Availability
295 NLA ITEM Insulation-vent Call for Availability
296 WB34K13 Shield Heat Inner Call for Availability
299 WB2K38 Clip Wire Call for Availability
700 NLA ITEM Retainer-insulation Vent Call for Availability
702 WB1K45 WB1K45 Washer Call for Availability
703 NLA ITEM Bracket Oven Corner Call for Availability
709 WB8K4 Retainer Insulation Lamp Call for Availability
1000 WB04K10021 WB04K10021 Trim Front Frame Call for Availability
1120 WB02K10179 WB02K10179 Bumper Call for Availability
WB02K10178 WB02K10178 Bumper Call for Availability
