GE DLLLR23GG7WW Parts List

Popular Searches: (Click to search)    and  asm  bearing  clip  door  drum  gas  green  idler  kit  knob  orifice  pulley  sleeve  slide  start  switch  timer  top  white


Select a Diagram

1 - Backsplash, Blower & Motor

2 - Front Panel & Door

3 - Cabinet

4 - Drum

5 - Gas Valve & Burner Assembly

Select Diagram ... 1 - Backsplash, Blower & Motor 2 - Front Panel & Door 3 - Cabinet 4 - Drum 5 - Gas Valve & Burner Assembly

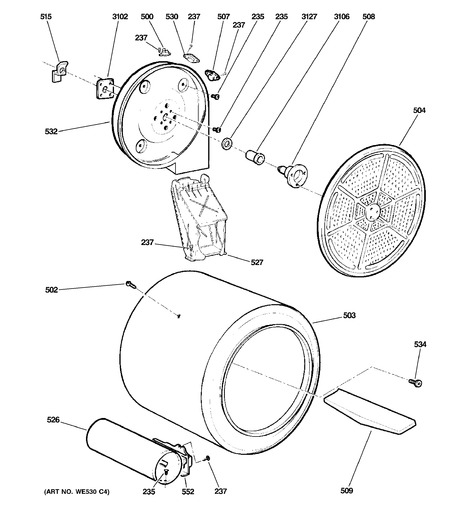

4 - Drum   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
235	WE2X263D	Screw   (Replaces: WE2X263)	Call for Availability
237	WD02X10057	Screw (Replaces: WE2M154)	Call for Availability
500	WE4M137	T'stat Hi-limit	Call for Availability
502	WE2M174	Screw #10	Call for Availability
503	WE21X20562	Drum Asm 6.0 Cu.ft (Replaces: WE21M14)	Call for Availability
504	WE11X29438	Deflector Heat (Replaces: WE14X20082 WE14M77)	Call for Availability
507	WE4M181	T'stat Inlet Biased	Call for Availability
508	WE25M40	Shaft & Bracket Asm	Call for Availability
509	WE14M75	Baffle Drum	Call for Availability
515	WE1M1015	Ground Strap	Call for Availability
526	NLA ITEM	Combustion Chamber	Call for Availability
527	WE11X29441	Duct Transition	Call for Availability
530	WE4M80	Thermostat Safety	Call for Availability
532	WE11X29443	Diffuser Gas & Plate Asm	Call for Availability
534	WE2M163	Screw #10	Call for Availability
552	WE4X448	Flame Detector	Call for Availability
3102	WE1M300	Bearing Retainer	Call for Availability
3106	WE1M462	Sleeve, Drum Bearing	Call for Availability
3127	WE1M461	O-ring	Call for Availability
