GE RGB523PPH2CT Parts List

Popular Searches: (Click to search)    anti  asm  assembly  bracket  bsqt  burner  cooktop  double  flat  guide  hinge  knob  leveler  oven  pilot  range  support  thermostat  tip  top


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

2 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
100	NLA ITEM	Cover End Left (blk)	Call for Availability

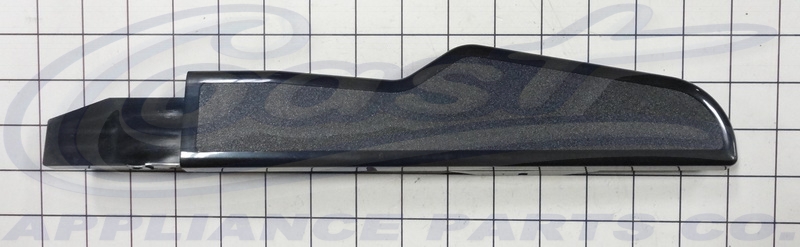

	WB7K380	Cover End Right (blk)	$22.40 Special Order
101	NLA ITEM	Brace (lt & Rt)	Call for Availability
104	NLA ITEM	Control Trim	Call for Availability
113	WB31K10012	Grate-8 Finger (blk)	$82.10  In-Stock Retail: $98.49
114	WB62K10064	Cooktop-flat (bsqt)	$128.00 Special Order
115	NLA ITEM	Support Range Top	Call for Availability
117	NLA ITEM	Pin Locator	Call for Availability
120	WB1K45	Screw Washer Asm	$10.50  In-Stock Retail: $10.22
121	NLA ITEM	Screw 12-14, 5/8s	Call for Availability
122	WB10K18	Guide Hinge Right	$10.50 Special Order
	NLA ITEM	Guide Hinge Left	Call for Availability
206	WR01X10065	Screw	$10.50 Special Order
702	WB1K45	Washer	$10.50  In-Stock Retail: $10.22
