Frigidaire CGEB27S7CS2 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    2300w  3400w  assy  bake  barrier  blower  brkt  broil  door  element  glass  heat  latch  light  motor  oven  probe  switch  temp  thermal


Select a Diagram


07 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
3 318026128 Trim-oven Door,white $272.10
Special Order
4 318051618 Glass,oven Door ,white ,outer $251.50
Special Order
6 318073502 Shield,air Wash $16.30
Special Order
7 318362113 Insulation,door ,top & Bottom ,(2) $6.30
Special Order
7A 318362112 Insulation,door ,sides ,(2) $6.20
Special Order
9 318048504 Liner-oven Door $264.40
Special Order
11 5303320493 Cover-hinge Cutout $4.90
Special Order
12 318053100 Seal-oven Door $227.50
Special Order
16 318042300 Glass-oven Door, Heat Barrier, (2) $216.80
Special Order
17 318042000 Spacer-glass $25.10
Special Order
18 318293502 Gasket,door Glass Seal Call for Availability
20 318113800 Spacer-door Call for Availability
22 5303310511 Bar,glass Retainer $44.60
Special Order
23 318074208 Hinge,oven Door ,lower $152.80
Special Order
23A 318074207 Hinge,oven Door ,upper $191.30
Special Order
28 318090210 Strike-door $61.10
Special Order
31 318065102 Latch-door $43.10
Special Order
38 318074801 Stop,door ,white $28.20
Special Order
39 318039901 Handle,oven Door ,white $173.60
Special Order
53 318074912 Pin,hinge $33.40
Special Order
54 5303300265 5303300265 Screw,8-18 X 1/2 ,(2) $10.30
Special Order
57 318172902 Stiffener Glass $1.10
Special Order
60 5303321221 Screw-handle, Black $7.20
Special Order

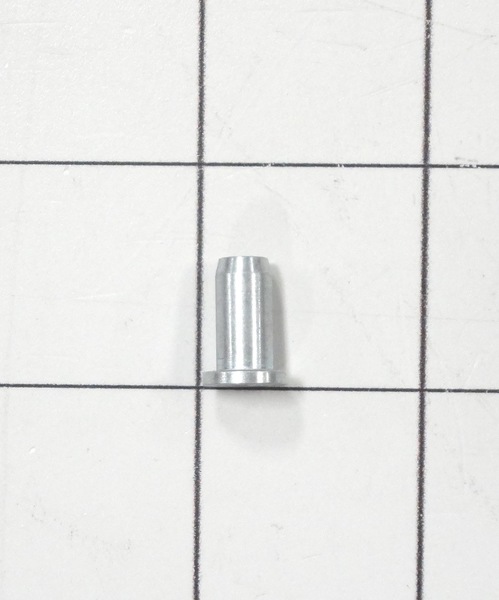

65 318090122 318090122 Bushing,hinge $18.20
Special Order
66 318167101 Screw,door Lock $28.20
Special Order
NI 5303325630 Lockwasher $0.80
Special Order
5303321214 Washer, Lock $23.60
Special Order
5303325170 Nut-keps, 8-32 $4.30
Special Order
