Maytag ABB2227DES Parts List

Popular Searches: (Click to search)    blk  capacitor  compressor  control  damper  defrost  elec  evap  evaporator  fan  gear  ice  kit  maker  motor  overload  relay  thermistor  thermostat  tpg1370yxa


Select a Diagram

01 - Cabinet Back

02 - Compressor

03 - Controls

04 - Evaporator Area & Rollers

05 - Freezer Door

06 - Interior Cabinet & Freezer Shelving

07 - Optional Ice Maker Kit Ic11b P1328003w

08 - Refrigerator Door

09 - Refrigerator Shelving

10 - Supplemental Information

11 - Wiring Information

Select Diagram ... 01 - Cabinet Back 02 - Compressor 03 - Controls 04 - Evaporator Area & Rollers 05 - Freezer Door 06 - Interior Cabinet & Freezer Shelving 07 - Optional Ice Maker Kit Ic11b P1328003w 08 - Refrigerator Door 09 - Refrigerator Shelving 10 - Supplemental Information 11 - Wiring Information

05 - Freezer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP67006852	Clip,handle Butterfly (Series: 10) (Replaces: 12723002)	$14.10 Special Order
2	67004366	Door Assy., Frz. Foam (stnls) (Series: 10)	$414.40 Special Order
3	67004959	Handle, Assembly (stnls) (Replaces: 67003919)	Call for Availability

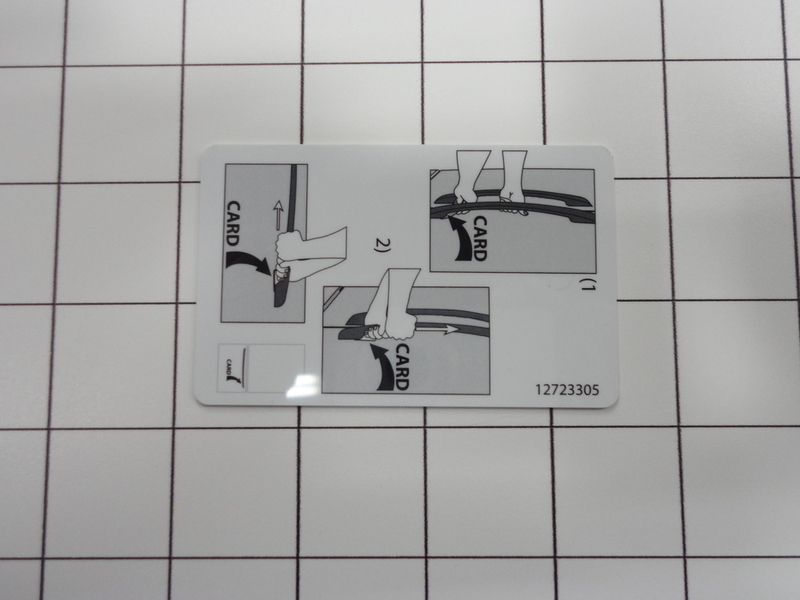

	67003876	Card, Handle Release (Series: 10)	$4.20 Special Order
4	WPW10436250	Gasket, Fz Door (blk) (Series: 10) (Replaces: 67003555)	$211.70  In-Stock Retail: $206.44
5	A3080001	Plug, Button (blk) (Series: 10)	Call for Availability
6	12991101	Screw, Sm Hex Head (Series: 13)	$8.20 Special Order
	12991101	Screw, Sm (Series: 10)   (Replaces: M0210816)	$8.20 Special Order
7	WP67006197	Screw,hi/lo (Series: 13)	$4.50 Special Order
	67004838	Plug, Button (blk) (Series: 10)	$6.60 Special Order
8	WP67003639	Closure, Door (blk) (Series: 10) (Replaces: 67003639)	$48.90  In-Stock Retail: $47.70
