GE JSP39WK2WW Parts List

Popular Searches: (Click to search)    1500w  2600w  3400w  appliance  asm  bake  block  bowl  broil  burner  clip  cntl  element  holder  inf  lamp  oven  receptacle  sensor  terminal


Select a Diagram

1 - Control Panel & Cooktop

2 - Body Parts

3 - Door

4 - Door Lock

Select Diagram ... 1 - Control Panel & Cooktop 2 - Body Parts 3 - Door 4 - Door Lock

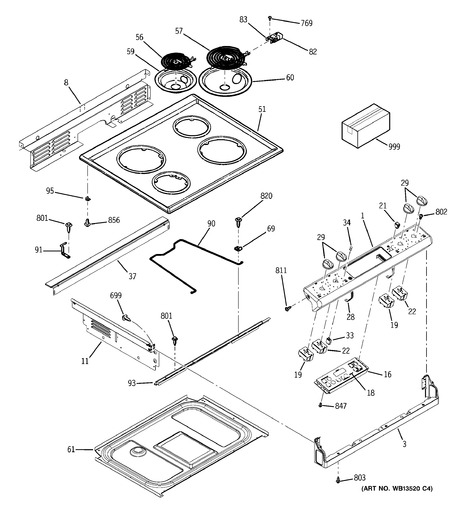

1 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WB36T10796	Panel Cntl Graphics Asm	Call for Availability
3	WB36T10795	Panel Cntl Btm	Call for Availability
8	WB07K10155	Extension Rear	Call for Availability
11	WB07T10473	Extension Side Rt	Call for Availability
	WB07T10474	Extension Side Lt	Call for Availability
16	WB27X45466	Oven Control T0-9 Elect   (Replaces: WB27T10489)	Call for Availability
18	WB27T10661	Faceplate Graphics Asm	Call for Availability
19	WB24T10029	Inf Sw Cntl 1500w	Call for Availability
21	WB24T10043	Oven Rocker Switch	Call for Availability
22	WB24T10025	Inf Sw Cntl 2600w Rf Lr	Call for Availability
28	WB02T10267	Bracket Control	Call for Availability
29	WB03T10235	Knob Ge Su (wh)	Call for Availability
33	WB25K10010	Light Indicator Pilot	Call for Availability
34	WB25T10042	Lens	Call for Availability
37	WB07K10157	Filler Backsplash (wht)	Call for Availability
51	WB62T10427	Maintop Wh	Call for Availability
56	WB30X20478	Surface Element 6" (Replaces: WB30T10077)	Call for Availability
57	WB30X20481	Surface Elemnt 8" (Replaces: WB30T10109 WB30T10073)	Call for Availability
59	WB31T10010	Burner Bowl 6"	Call for Availability
60	WB31T10011	Burner Bowl 8"	Call for Availability
61	WB64T10053	Bottom Burn Box	Call for Availability
69	WB2M87	Support Rod Clamp	Call for Availability
82	WB17T10006	Terminal Block (Replaces: WB17T10001)	Call for Availability
83	WB2X8228	Clip Receptacle	Call for Availability
90	WB02T10268	Rod Maintop Supt	Call for Availability
91	WB14T10027	Hinge Maintop Rt	Call for Availability
	WB14T10028	Hinge Maintop Lt	Call for Availability
93	WB34T10105	Cover Wire	Call for Availability
95	WB10X255	Mt Hinge Bracket	Call for Availability
699	WB1M1	Screw St10-16 X 7/16"	Call for Availability
769	WB1X500D	Scr 8-18 B Hxw 1/4 S	Call for Availability
801	WB1M1	Screw	Call for Availability
802	WB1K5123	Screw	Call for Availability
803	WB01T10095	Scr 10-32 Hwh I 13/16	Call for Availability
811	WB01T10094	Scr 8-32 Pn 1/2	Call for Availability
820	WB1X1424D	Screw	Call for Availability
847	WB1X1118	Screw-nickel	Call for Availability
856	WB1X1293	Screw Tc10-32x.250hexni	Call for Availability
999	49-80246	Manual Use & Care	Call for Availability
	31-14250	Manual Mini & Wd Asm	Call for Availability
	31-10514	Instruction Sheet	Call for Availability
	31-10596	Instruction Install	Call for Availability
