GE JBP56G*R1 Parts List

Popular Searches: (Click to search)    240v  asm  bake  bowl  broil  bulb  burner  door  gasket  handle  light  oven  receptacle  0  unit


Select a Diagram

1 - Control Panel & Cooktop

2 - Body Parts

3 - Door & Drawer Parts

Select Diagram ... 1 - Control Panel & Cooktop 2 - Body Parts 3 - Door & Drawer Parts

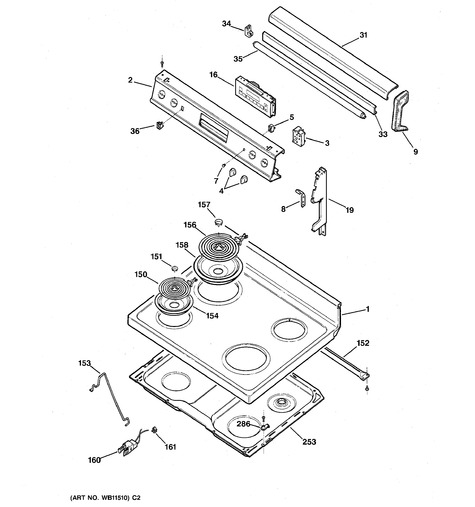

1 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WB62X5406	Cooktop	$308.80 Special Order
	WB62X5386	Cooktop Wh	$293.30 Special Order
2	WB36X5664	Trim & Bracket Asm	Call for Availability
3	WB21X36771	Switch, Inf Surface Unit   (Replaces: WB21X5243)	$45.00  In-Stock Retail: $55.72
4	NLA ITEM	Surface Unit Knob	Call for Availability
5	WB2X7698	Lamp Pilot 250v	$18.80 Special Order
7	NLA ITEM	Jewel	Call for Availability
8	WB2X8127	Pin Hinge L	$11.10 Special Order
	WB2X8126	Pin Hinge R	$11.10 Special Order
9	WB7X7124	Cap End Lamp L	Call for Availability
	WB7X7123	Cap End Lamp R	Call for Availability
16	WB27X5476	Timer Erc2	Call for Availability
19	WB7X7133	End Plate L	$27.60 Special Order
	WB7X7132	End Plate R	$32.80 Special Order
31	WB7X7134	Lamp Cover White	$39.20 Special Order
33	WB7K40	Shield Lamp	$34.70 Special Order
34	NLA ITEM	"f" Lamp Socket Rh & Lh	Call for Availability
36	WB24X5263	Switch-rocker Lamp	$39.70 Special Order
150	WB30M1	Unit Asm 6 Inch Plug In	$34.80  In-Stock Retail: $87.39
151	NLA ITEM	Center Trim 6" Unit	Call for Availability
152	WB2X8128	Bar Torsion	$24.20 Special Order
153	WB2X8114	Rod Support	Call for Availability
154	WB31K10265	Burner Bowl 6" (Replaces: WB32X5075)	$7.10  In-Stock Retail: $11.89
156	WB30M2	8" Surface Element	$47.10  In-Stock Retail: $107.40
157	NLA ITEM	Center Trim 8" Unit	Call for Availability
158	SMP8DNGE	Burner Bowl 8"   (Replaces: WB32X5076)	Call for Availability
160	WB17X5113	Receptacle Asm	$21.50  In-Stock Retail: $52.79
161	WB2X8115	Clip Wire	$10.50 Special Order
253	NLA ITEM	Box Cooktop	Call for Availability
286	WB2X8107	Strike Cooktop	$20.40 Special Order
