Maytag A8WXNGMWH00 Parts List

Popular Searches: (Click to search)    [customer  adaptive  assembly  brush  can  complete  control  customer  defrost  drier  enamel  icemaker  kit  material  service  spray  touch  trim  valve  white


Select a Diagram

01 - Cabinet Parts

02 - Door Parts

03 - Liner Parts

04 - Unit Parts

05 - Icemaker Parts

06 - Dispenser Front Parts

07 - Shelf Parts

08 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Door Parts 03 - Liner Parts 04 - Unit Parts 05 - Icemaker Parts 06 - Dispenser Front Parts 07 - Shelf Parts 08 - Optional Parts (not Included)

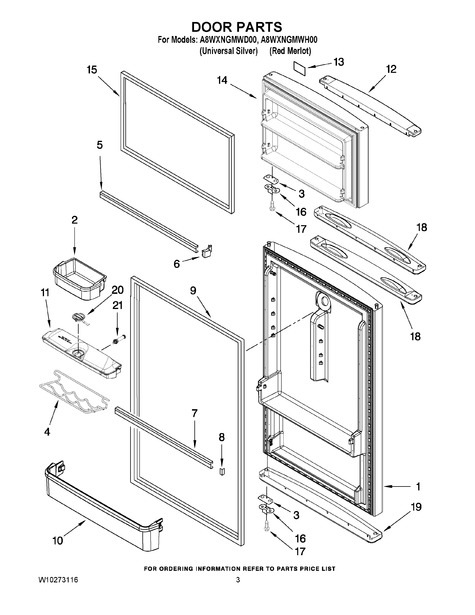

02 - Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10209946	Refrigerator Door (includes Illus. 9) (red Merlot)	$483.40 Special Order
	W10209945	Refrigerator Door (includes Illus. 9) (universal Silver)	$483.40 Special Order
2	W11396038	Bin, Door (Replaces: 2265126)	$86.80  In-Stock Retail: $84.63
3	WP2258681W	Shim, Door Stop   (Replaces: 2258681W)	$4.50 Special Order
4	2265630	Can Rack	$42.50 Special Order
5	WP2266727	Trim, Door Shelf (narrow)   (Replaces: 2266727)	$70.90  In-Stock Retail: $69.12
6	WP2156003	End Cap, Trim (Replaces: 2156003)	$7.80  In-Stock Retail: $7.59
7	2316061	Trim, Door Shelf	Call for Availability
8	WP2156007	Endcap, Trim	$4.50  In-Stock Retail: $4.33
9	WP2319264W	Door Gasket, Magnetic	$186.20 Special Order
10	WPW10468559	Trim, Door (Replaces: 2328217)	$61.90  In-Stock Retail: $60.36
11	W10138779A	Water Tank Assy	$42.50 Special Order
12	W10209944	Endcap, Top	$35.20 Special Order
13	2325418	Nameplate	$31.20 Special Order
14	W10209948	Freezer Door (includes Illus. 15) (red Merlot)	$443.10 Special Order
	W10209947	Freezer Door (includes Illus. 15) (universal Silver)	$58.10 Special Order
15	WP2319263W	Door Gasket, Magnetic	$150.10 Special Order
16	WP2183805	Bracket, Door Stop	$6.60  In-Stock Retail: $6.35
17	WP4449746	Screw	$4.50 Special Order
18	W10209940	Endcap, Handle	$42.30 Special Order
19	W10209942	Endcap, Bottom	$36.90 Special Order
20	W10138779A	Lid, Water Tank	$42.50 Special Order
21	2328499A	Valve, Water Tank	$21.30 Special Order
