Maytag A410 Parts List

Popular Searches: (Click to search)    bearing  belt  damper  drive  hose  injector  kit  lid  light  lube  motor  pad  poly  pulley  pump  repair  switch  tub  valve  water


Select a Diagram

01 - 50hz Parts (a410)

02 - Base, Pump, Motor & Components

03 - Cbnt,water Inj & Valve,hoses & Frt Panel

04 - Clutch, Brake & Belts

05 - Control Panel, Timer & Switches (a410)

06 - Top Cover, Console & Lid Switch

07 - Transmissions

08 - Tub, Agitator, Mounting Stem & Seal

Select Diagram ... 01 - 50hz Parts (a410) 02 - Base, Pump, Motor & Components 03 - Cbnt,water Inj & Valve,hoses & Frt Panel 04 - Clutch, Brake & Belts 05 - Control Panel, Timer & Switches (a410) 06 - Top Cover, Console & Lid Switch 07 - Transmissions 08 - Tub, Agitator, Mounting Stem & Seal

05 - Control Panel, Timer & Switches (a410)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	205608	Speed Control Switch (Series: 00)	$23.10 Special Order
2	205610	Water Temperature Switch (Series: 00)	$21.90 Special Order

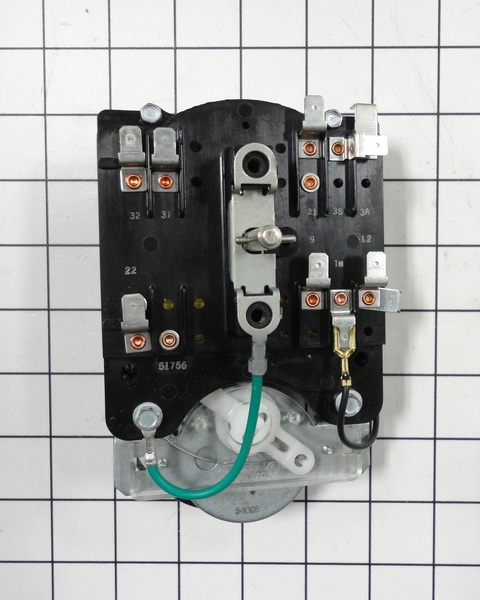

3	205638	Timer (Series: 00)	Call for Availability
4	205691	Control Panel (Series: 00)	Call for Availability
5	205704	Infinite Water Level Contro (Series: 00)	$46.10 Special Order
6	205864	Timer Motor 120-60 (Series: 00)	Call for Availability
7	210932	Screw, No.8 X 9/16 Ctsk (Series: 00)	$4.40 Special Order
8	WP211065	Spring, Timer Knob (Series: 00) (Replaces: 211065)	$4.50 Special Order
9	WPW10139210	Screw, No.8 X 5/16 Inch (Series: 00)	$4.50  In-Stock Retail: $4.33
10	WPW10137328	Retainer, Timer Knob (Series: 00) (Replaces: 211605)	Call for Availability
11	WP67006908	Screw-temp. Switch To Panel (Series: 00)	$4.50  In-Stock Retail: $4.33
12	WP3400014	Screw-timer To Control Pane (Series: 00)	$4.50 Special Order
13	214806	Cap For Timer Knob (Series: 00)	$4.40 Special Order
14	214809	Back Up Plate (Series: 00)	$14.60 Special Order
15	22001571	Timer Dial Indicator (Series: 00) (Replaces: 214810)	$23.50 Special Order
16	214811	Knob For Timer (Series: 00)	$21.10 Special Order
17	214815	End Cap F/control Panel-lh (Series: 00)	Call for Availability
18	214816	End Cap F/control Panel-rh (Series: 00)	$6.90 Special Order
19	214872	Palnut, End Cap (Series: 00)	Call for Availability
20	214893	Detent Ring F/timer Knob Ca (Series: 00)	Call for Availability
21	214894	Fastener, End Cap (Series: 00)	$4.40 Special Order
22	214897	Pad, Control Panel (Series: 00)	$27.00 Special Order
