Frigidaire BFEF323ES3 Parts List

Popular Searches: (Click to search)    2750w  3000w  6``  bake  block  broil  cover  cutout  element  0  hinge  indicator  kit  light  oven  probe  receptacle  surface  temp  terminal


Select a Diagram

03 - Backguard

05 - Body

07 - Top/drawer

09 - Door

01 - Cover

Select Diagram ... 03 - Backguard 05 - Body 07 - Top/drawer 09 - Door 01 - Cover

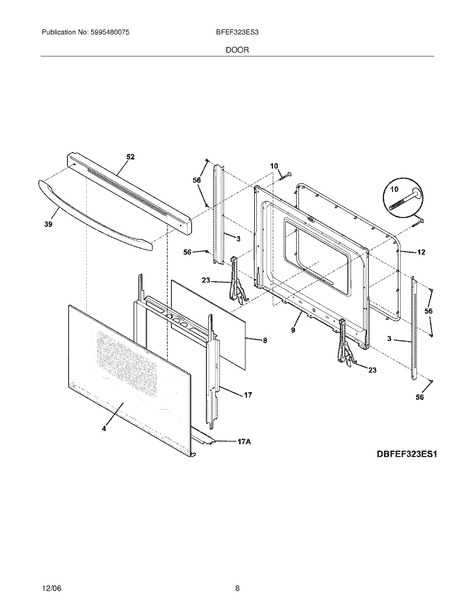

09 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
3	318301401	Trim,oven Door ,white	$18.60 Special Order
4	318304100	Door Assembly,glass ,white ,w/trim	$96.90 Special Order
8	316427700	Glass,oven Door ,inner	$121.50 Special Order
9	318259625	Liner,oven Door	$105.60 Special Order
10	5304453593	Screw,handle Mtg.	$7.70 Special Order
12	318053325	Seal,door ,lower Oven	$47.20 Special Order
17	318300503	Bracket,glass	$32.60 Special Order
17A	318300601	Bracket,glass ,lower	$37.00 Special Order
23	5303311259	Hinge,oven Door ,(2)	Call for Availability
39	316270201	Handle,door ,white	$92.80 Special Order
52	318304200	Trim,door ,white ,upper	$37.70 Special Order
	318304202	Trim,door ,black ,upper	$37.10 Special Order
56	5304448821	Screw,8-18 X 1/2 ,white ,(6)	$6.80 Special Order
	5304436875	Screw,8-18 X 1/2,black	$9.80  In-Stock Retail: $9.49
NI	5303300414	Spacer, Cork & Rubber	$9.10 Special Order
	5304415832	Screw,8-18 X 0.406	$9.80 Special Order
