Maytag A22CM Parts List

Popular Searches: (Click to search) bearing belt damper drive injector kit lid light lube motor one pad pak poly pulley pump repair speed switch tub

Select a Diagram

01 - Front View

02 - Rear View

03 - Front Panel Removed

04 - Top Cover Up

05 - Control Panel

06 - Cm Control Center

07 - Motor Mount, Base Frame & Centering Sprs

08 - Power Unit & Center Assembly

09 - `poly` Pump

10 - Brake & Clutch Assembly

11 - Bleach Injection System

12 - Water Injection System, Hoses & Clamps

13 - 230 Volt, 50 Cycle Parts

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
001	NLA	Top Cover-white	Call for Availability
002	NLA	Cabinet-white	Call for Availability
003	205613	Water Valve W/solenoids	$59.90 In-Stock Retail: $56.98
004	204590	Power Cord	$46.40 Special Order
005	NLA	Control Center-white	Call for Availability
006	NLA	Control Center-white	Call for Availability
007	NLA	Control Center-white	Call for Availability
008	NLA	Top Cover-white	Call for Availability
009	NLA	Control Cover-white	Call for Availability
010	WP489128	Screw, Ground Wire To Base--na	$6.30 Special Order
011	WP90767	Screw	$4.50 In-Stock Retail: $4.33
012	211704	Drain Hose	$101.40 Special Order
013	NLA	Plate, Access	Call for Availability
014	211881	Grommet, Cord	$4.40 Special Order
015	WP90767	Screw	$4.50 In-Stock Retail: $4.33
016	NLA	Valve Mounting Plate	Call for Availability
017	212985	Plate, Access (w/hole)	Call for Availability
018	213042	Back Panel	Call for Availability

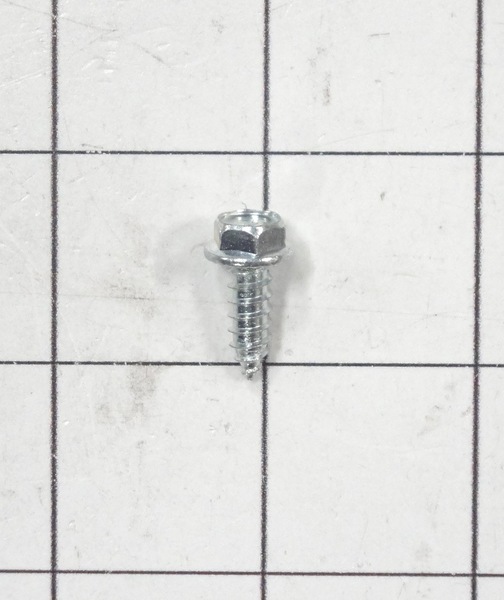

019	WPW10346892	Screw	$4.50 In-Stock Retail: $4.33
020	214519	Label, Electrical Instruction	Call for Availability
021	WP1163839	Screw	$4.50 Special Order
022	WPY313561	Screw----na	$4.50 Special Order
