Maytag A203S Parts List

Popular Searches: (Click to search)    belt  brake  clamp  gasket  hose  inch  screw  speed  two  0  bearing  drive  kit  motor  pak  pulley  pump  repair  rubber  tub


Select a Diagram

01 - 115-230 Volt, 50 Cycle Parts

02 - Brake & Clutch Assembly

03 - Cabinet Removed

04 - Diverter Valve

05 - Electrical Parts

06 - Front View

07 - Motor Mount, Base Frame & Centering Sprs

08 - `poly` Pump

09 - Power Unit & Center Assembly

10 - Water Injection

11 - Water Valve Assembly

Select Diagram ... 01 - 115-230 Volt, 50 Cycle Parts 02 - Brake & Clutch Assembly 03 - Cabinet Removed 04 - Diverter Valve 05 - Electrical Parts 06 - Front View 07 - Motor Mount, Base Frame & Centering Sprs 08 - `poly` Pump 09 - Power Unit & Center Assembly 10 - Water Injection 11 - Water Valve Assembly

05 - Electrical Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	200046	Connector, Female (Series: 00)	Call for Availability

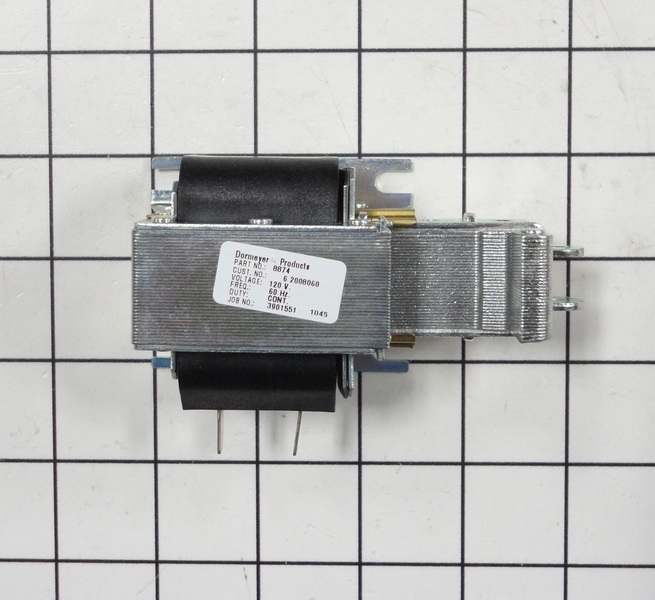

2	200806	Solenoid (Series: 00)	$109.80 Special Order
3	200977	Solenoid For Water Valve (Series: 00)	$20.50 Special Order
4	200996	Timer Motor, A (Series: 00)	Call for Availability
5	201124	Unbalance Lever (Series: 00)	Call for Availability
7	201754	Pressure Switch (Series: 00)	Call for Availability
8	201755	Fabric Switch (Series: 00)	Call for Availability
9	201759	Timer (Series: 00)	Call for Availability
11	201782	Temperature Switch (Series: 00)	Call for Availability
12	12002353	Motor - Two Speed 120-60 (Series: 00) (Replaces: 201807)	Call for Availability
13	Y201808	Converter (Series: 00)	$4.40 Special Order
14	201956	Motor Cord (Series: 00)	Call for Availability
15	202208	Escapement For Timer (Series: 00)	Call for Availability
16	W10820036	Lid Switch (Series: 00)	$31.50  In-Stock Retail: $31.49
17	210175	Wire Connector (Series: 00)	Call for Availability
18	WP211065	Spring, Timer Knob (Series: 00) (Replaces: 211065)	$4.50 Special Order
19	WPW10139210	Screw, No.8 X 5/16 Inch (Series: 00)	$4.50  In-Stock Retail: $4.33
20	211225	Pad For Unbalance Bumper (Series: 00)	Call for Availability
21	211251	Screw (Series: 00)	$4.40 Special Order
22	211586	Screw, No.8 X 7/8 Inch (Series: 00)	Call for Availability
23	211587	Screw, No.8 X 1/4 Inch (Series: 00)	Call for Availability
24	WPW10137328	Retainer, Timer Knob (Series: 00) (Replaces: 211605)	Call for Availability
25	WP248562	Wire Connector (Series: 00)	$4.50 Special Order
26	211835	Control Knob - Timer (Series: 00)	$9.60 Special Order
28	212012	Timer Dial (Series: 00)	Call for Availability
29	213501	Screw-hex Hd Type B No.6 X 15/16 (Series: 00)	$8.20 Special Order
30	212813	Pin For Lid Switch (Series: 00)	$0.40 Special Order
31	212814	Switch Bracket (Series: 00)	$0.40 Special Order
32	213077	Cap For Timer Knob (Series: 00)	Call for Availability
33	Y310376	Clip, Wire Harness (Series: 00)	$4.40 Special Order
34	053759	Screw, No.6-32 X 3/8 (Series: 00)	Call for Availability
