Whirlpool 7MWGD9270XL0 Parts List

Popular Searches: (Click to search)    91°  assembly  belt  bracket  catch  coil  door  drive  fuse  idler  ignitor  main  pilot  position  pulley  roller  split  support  terminal  thermal


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - 8576353 Burner Assembly

05 - Door Parts

06 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - 8576353 Burner Assembly 05 - Door Parts 06 - Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10339519	Use & Care Guide	Call for Availability
	W10294025	Tech Sheet	Call for Availability
2	WPW10336091	Top (silver)	$169.00 Special Order

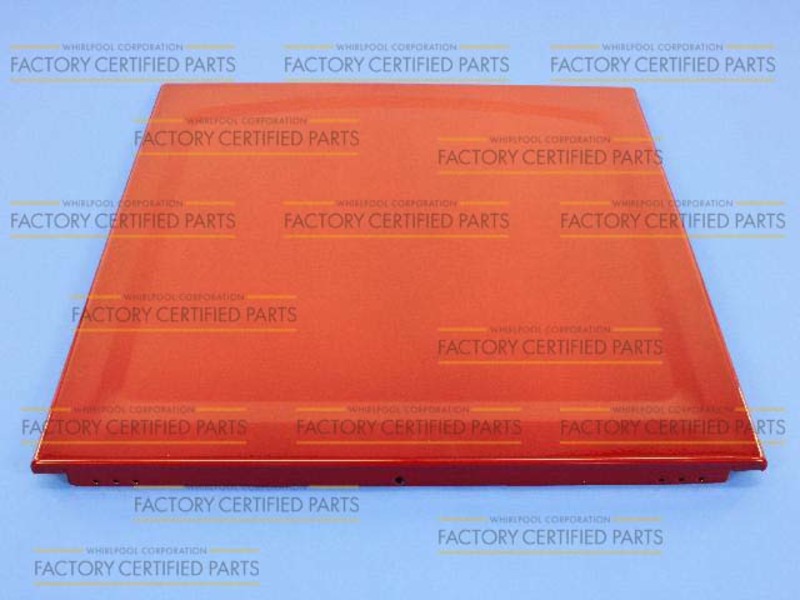

	W10336090	Top (red)	$118.80 Special Order
3	W10278758	Harness, Main	$107.10 Special Order
4	W10215464	Panel, Console (silver)	$262.10 Special Order

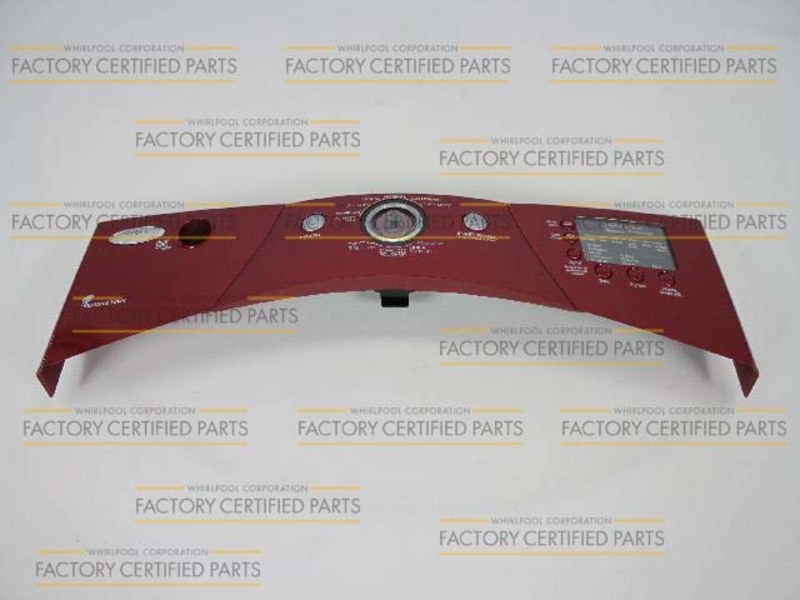

	WPW10215463	Panel, Console (red)	$276.30 Special Order
5	W10006580	Screw	$7.60 Special Order
6	WP8565237	Bracket, Console	$103.60 Special Order
7	W10153920	Spring, Knob	$5.40 Special Order
8	8572039	Seal, User Interface	$13.30 Special Order
9	W10215469	Cover, Center (red)	$77.80 Special Order
	W10215468	Cover-center (silver)	$131.70 Special Order
10	WPW10247262	Knob	$33.10 Special Order
11	WP488729	Screw, 8-18 X 1/2	$4.50  In-Stock Retail: $4.33
12	WPW10266747	Channel, Water	$40.00 Special Order
13	W10117943	Badge, Assembly	$11.80 Special Order
14	W10237301	Cycle, Light Guide	$56.90 Special Order
15	3400238	Screw, 2-28 X 1/2	$8.20 Special Order
16	W10215460	Assembly, User Interface	$133.60 Special Order
