Whirlpool YWED9750WL0 Parts List

Popular Searches: (Click to search)    91`c  assembly  belt  bracket  catch  door  drive  fuse  idler  motor  paint  pressurized  pulley  roller  spray  strike  support  thermal  thermistor  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - Door Parts

05 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - Door Parts 05 - Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10258369	Tech Sheet	Call for Availability
	W10255469	Installation, Instruction	Call for Availability
	W10289764	Use & Care Guide	Call for Availability
2	W10249739	Top (silver)	$104.50 Special Order
	3980634	Top (white)	$27.80 Special Order
	W10249738	Top (red)	$104.10 Special Order
3	W10111066	Harness, Main	$141.90 Special Order
4	W10287716	Panel, Console (include Items,20,21,22,27,28 & 29) (silver)	$426.90 Special Order
	W10287715	Panel, Console (include Items,20,21,22,27,28 & 29) (white)	$325.10 Special Order
	WPW10287717	Panel, Console (include Items,20,21,22,27,28 & 29) (red)	$416.40 Special Order
5	WP3391018	Tie, Cable	$19.40 Special Order
6	W10215656	Bracket, Console (include, Item. 12)	$62.10 Special Order
7	W10112268	Clip-harness (4)	$7.90 Special Order
8	WP94614	Terminal	$4.50 Special Order
9	3936144	Plug, Terminal	$13.00 Special Order
10	WP596797	Terminal	$4.50 Special Order
11	WP488729	Screw, 8-18 X 1/2	$4.50  In-Stock Retail: $4.33
12	W10112267	Foam-seal	$54.80 Special Order
13	W10012480	Array-power	$9.90 Special Order
14	3936150	Connector, 7-circuit	$50.90 Special Order
15	3395683	Connector (motor)	$31.90 Special Order
16	303776	Screw, 8-32 X 1/32	$6.80 Special Order
17	2203186	Connector, 5-circuit	$7.90 Special Order
18	W10288016	User-interface (right)	$182.20 Special Order
19	WPW10280044	User Interface (center) (include, Item. 13 )	$208.50 Special Order
20	W10012430	Encoder-wheel	$11.70 Special Order
21	WPW10012440	Retainer-snap	$9.90 Special Order
22	W10012410	Knob, Light Ring (include, Item. 21 )	$17.10 Special Order
23	280230	Rast, Wheel Holder (service Only With Item. 28 )	$98.80 Special Order
24	280230	Detent Wheel (service Only With Item. 28)	$98.80 Special Order
25	W10242906	Harness, Communication	$99.70 Special Order
26	280230	Knob, Spring (2) (service Only With Item 28)	$98.80 Special Order
27	W10190685	Knob, Control (include Item, 21. )	$36.40 Special Order

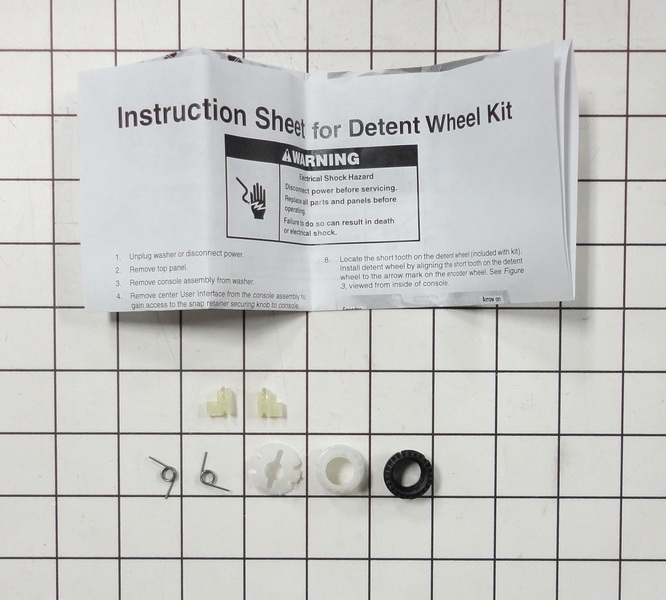

28	280230	Encoder, Wheel Kit (include Items, 23, 24 & 26)	$98.80 Special Order
29	W10117943	Badge	$11.80 Special Order
30	WP693995	Screw, Ground   (Replaces: 693995)	$4.50  In-Stock Retail: $4.33
