Whirlpool 7MWGD8500SR2 Parts List

Popular Searches: (Click to search)    assembly  belt  bracket  catch  coil  door  drive  fuse  idler  ignitor  main  paint  pilot  position  pulley  roller  split  terminal  thermal  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - 8576353 Burner Assembly

05 - Door Parts, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - 8576353 Burner Assembly 05 - Door Parts, Optional Parts (not Included)

05 - Door Parts, Optional Parts (not Included)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8565119	Plug Strip	$55.30 Special Order
2	WPW10304672	Door, Hinge Assembly (Replaces: 8578887)	$122.20 Special Order

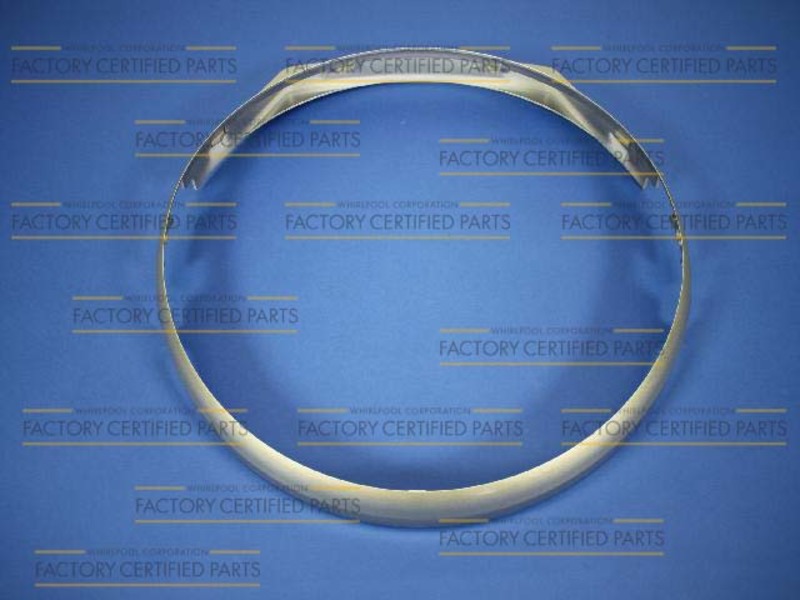

3	8579998	Door, (outer Ring)	$135.00 Special Order
4	W11116979	Screw,8-18 X 1/2	$8.20 Special Order
5	8571839	Cover, Hinge	$36.00 Special Order
6	W11706993	Seal, Window	$14.90 Special Order
8	WPW10159996	Screw, 10-24 X 3/64 (Replaces: W10159996)	$4.50  In-Stock Retail: $4.33
9	WP3373329	Screw	$4.50 Special Order
10	WPW10164062	Door Assembly (inner) (includes Illus. 1 & 14)	$207.70 Special Order
11	WP355515	Screw, 8-18 X 11/16	$4.50 Special Order
12	W10044190	Assembly, Door (outer)	$165.90 Special Order
13	WPW10286878	Window	$147.10 Special Order
14	279570	Door Catch Assembly (Replaces: 690081)	$13.50  In-Stock Retail: $13.45
15	W10822054	Retainer (lower)	$9.10 Special Order
16	8579560	Door, Intermediate	$74.10 Special Order
17	WP8534022	Screw	$4.50 Special Order
18	8519356	Retainer (upper)	$7.80 Special Order
	72017	Paint, Touch-up 1/2 Oz. (white)	$8.60  In-Stock Retail: $8.19
	350930	Paint, Pressurized Spray (12 Oz.) White	$12.60  In-Stock Retail: $11.98
	350938	Paint, Pressurized Spray (12 Oz.) (primer,grey)	$27.40  In-Stock Retail: $26.69
	799344	Paint, Bulk (1 Qt.) (white) (uncut)	$128.20 Special Order
	8529894	Kit, Hold Down	$89.70 Special Order
	8212450A	Dry Rack	$43.10 Special Order
	W11224254	Kit, Dryer Vent Testing (Replaces: 8522199)	$7.70  In-Stock Retail: $7.49
	4392067	Kit, Dryer Repair	$46.50  In-Stock Retail: $46.44
