Whirlpool WFW8400TB00 Parts List

Popular Searches: (Click to search)    absorber  bellow  belt  black  control  door  drive  hook  inlet  lock  motor  paint  pressurized  shock  spray  touch  tub  unit  valve  white


Select a Diagram

01 - Top And Cabinet Parts

02 - Door And Latch Parts

03 - Control Panel Parts

04 - Dispenser Parts

05 - Pump And Motor Parts

06 - Tub And Basket Parts, Optional Parts (not Included)

Select Diagram ... 01 - Top And Cabinet Parts 02 - Door And Latch Parts 03 - Control Panel Parts 04 - Dispenser Parts 05 - Pump And Motor Parts 06 - Tub And Basket Parts, Optional Parts (not Included)

03 - Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10132001	Panel, Control (white)	$202.50 Special Order
	W10131963	Panel, Control (black)	$183.30 Special Order
2	WP8574963	Knob, Control (nestle White) (Replaces: 8574963)	$42.80  In-Stock Retail: $41.66

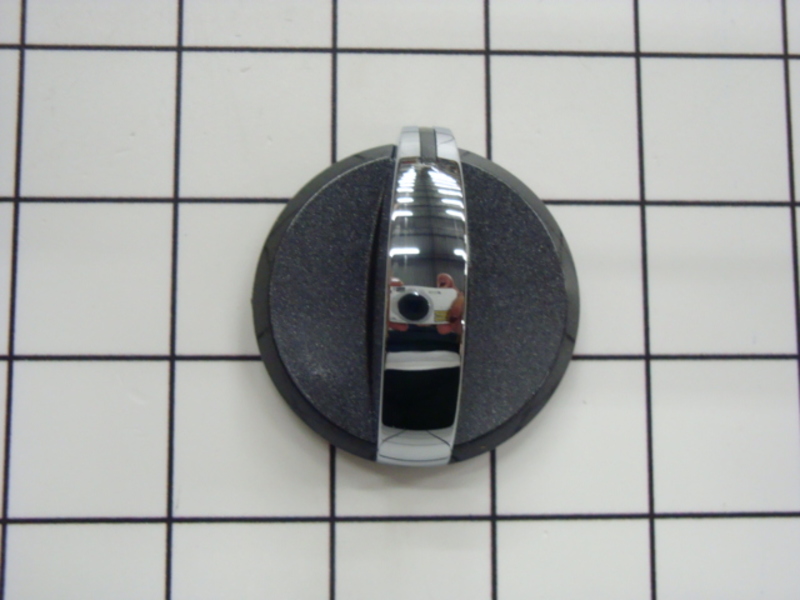

	W10129067	Knob, Control (tempest Grey)	$47.00 Special Order
3	WPW10149382	User Interface (black Model)	$236.00 Special Order
	WP8574920	User Interface (white Model)   (Replaces: 8574920)	$210.90 Special Order
4	W10846488	Brace, Top Front	$50.70 Special Order
5	8540839	Channel, Water	$22.00 Special Order
6	WPW10525357	Microcomputer, Machine Control (Replaces: W10160253)	$226.10 Special Order
7	WP488729	Screw, 8-18 X 1/2	$4.50  In-Stock Retail: $4.33
8	W10184856	Harness, Wiring (main)	$156.20 Special Order
9	WP8540282	Screw (Replaces: 8540282)	$7.20  In-Stock Retail: $6.96
10	WP489442	Screw, 8-18 X 5/8	$6.30 Special Order
