Whirlpool RF377PXVN0 Parts List

Popular Searches: (Click to search)    2oz  8``  almond  black  broil  clip  element  infinite  knob  leg  leveling  paint  platinum  pressurized  selector  spray  switch  touch  unit  white


Select a Diagram

02 - Cooktop

03 - Control Panel

04 - Door And Drawer

05 - Oven, Lit/optional

06 - Oven (continued)

07 - Wiring Harness

Select Diagram ... 02 - Cooktop 03 - Control Panel 04 - Door And Drawer 05 - Oven, Lit/optional 06 - Oven (continued) 07 - Wiring Harness

02 - Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	814262	Latch Assembly (Replaces: 3171148)	Call for Availability
	WP681414	Screw (2)	$4.50 Special Order
2	98106	Screw (2)	Call for Availability
	3178672	Safety Switch   (Replaces: 3178672 308185)	$52.80 Special Order
3	309245	Insulator, Switch	Call for Availability
4	309258	Screw,6-3/8 (2)	Call for Availability
	313035	Shield, Latch	Call for Availability
5	3147065	Handle, Latch	$19.10 Special Order
	308422	Screw (2)	Call for Availability
6	3148684	Knob, Latch	$28.20 Special Order
	WP486579	Screw 8-32 X 1/4	$4.40 Special Order
7	3149261	Support, Cooktop	Call for Availability
8	311311	Clip, Wire	Call for Availability
9	3147703	Bracket, Mounting	Call for Availability
10	3147704	Bracket, Mounting	Call for Availability
11	WP681414	Screw (4)	$4.50 Special Order
	307965	Bracket, Cooktop (2)	$102.50 Special Order
12	WP681414	Screw, 10-16 X 1/2 (4)	$4.50 Special Order
	307966	Pin, Cooktop (2)	Call for Availability
13	3171372	Cooktop (white)	Call for Availability
	3171376	Cooktop (gold)	Call for Availability
	3171373	Cooktop (almond)	Call for Availability
15	3147191	Spring, Leaf	Call for Availability
16	3147189	Nut, Metric	$4.40 Special Order

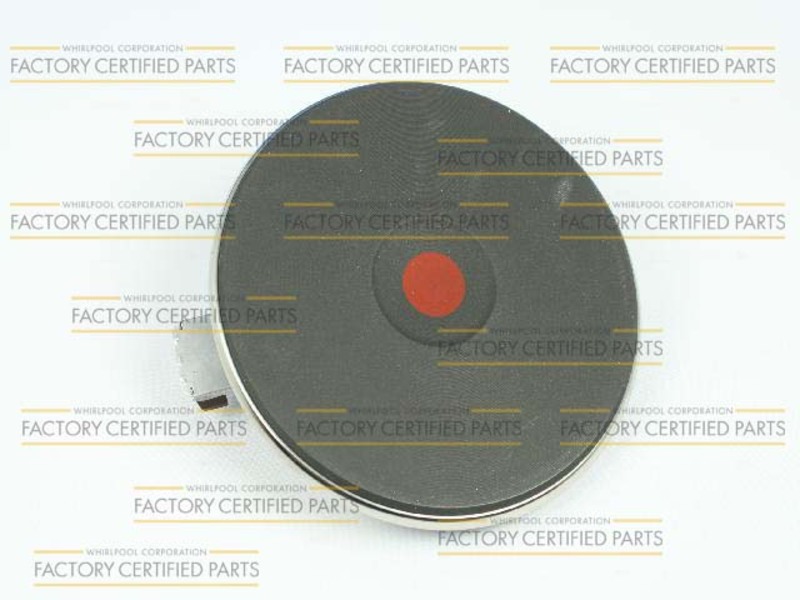

18	WP3147132	Element (8``)	$162.70 Special Order
19	WP3147131	Element (6``)	$145.60 Special Order
20	3149012	Cover, Vent (almond)	$29.10 Special Order
	3149011	Cover, Vent (white)	$27.00 Special Order
	3149015	Cover, Vent (gold)	Call for Availability
	3149190	Cover, Vent (clip, Mtg. (2))	$26.70 Special Order
22	3148669	Switch, Lock	Call for Availability
23	3147864	Insulator, Switch	Call for Availability
	313489	Screw (2)	Call for Availability
