Whirlpool 7GU3200XTSS1 Parts List

Popular Searches: (Click to search)    assembly  balance  bracket  control  dispenser  door  drain  fill  hose  link  metal  paint  pressurized  pump  spray  touch  undercounter  valve  wheel  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel Parts

03 - Door And Latch Parts

04 - Lower Washarm Parts

05 - Heater Parts

06 - Fill, Drain And Overfill Parts

07 - Tub And Frame Parts

08 - Pump And Motor Parts

09 - Upper Rack And Track Parts

10 - Upper Wash And Rinse Parts

11 - Lower Rack Parts, Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel Parts 03 - Door And Latch Parts 04 - Lower Washarm Parts 05 - Heater Parts 06 - Fill, Drain And Overfill Parts 07 - Tub And Frame Parts 08 - Pump And Motor Parts 09 - Upper Rack And Track Parts 10 - Upper Wash And Rinse Parts 11 - Lower Rack Parts, Optional Parts (not Included)

02 - Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10102479	Console Asm. (includes Active Overlay & Insert) (black)	$151.60 Special Order
2	8546546	Clip, Bi-metal	$6.00 Special Order
3	W10082957	Control Cover Shield Assembly	$21.20 Special Order
4	WP3400412	Screw	$4.50 Special Order
5	WP8524471	Actuator, Latch (Replaces: 8524471)	$56.80  In-Stock Retail: $55.39
6	W10258275	Bi-metal (Replaces: 661663)	$26.70  In-Stock Retail: $26.03
7	WP8269206	Display, Dual Digit (Replaces: 8269206)	$71.00 Special Order
8	WPW10348409	Screw (Replaces: W10348409 3369051)	$4.50  In-Stock Retail: $4.33

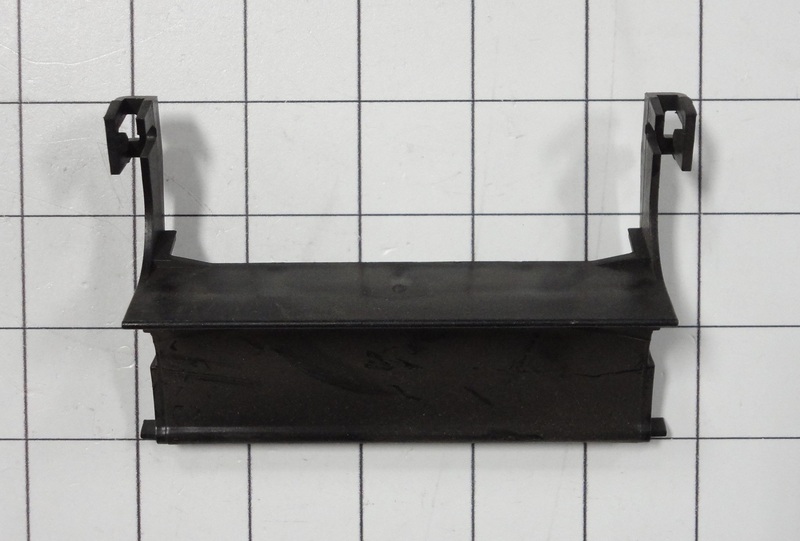

9	8575331	Handle, Latch (black)	$64.80 Special Order
10	8193882	Bolt, Latch	$65.60  In-Stock Retail: $63.97
11	WPW10084141	Control, Electronic (Replaces: W10084141)	$208.40  In-Stock Retail: $203.22
12	WP8269209	Switch, Door (Replaces: 8269209)	$23.10  In-Stock Retail: $22.46
