Whirlpool KUIS15NRHS6 Parts List

Popular Searches: (Click to search)    16``  4``  7``  access  assembly  blade  board  complete  evaporator  fan  grid  gum  pcs  plunger  pump  reservoir  sealer  switch  valve  water


Select a Diagram

01 - Cabinet Liner And Door Parts

02 - Evaporator Ice Cutter Grid And Water Parts

03 - Pump Parts

04 - Control Panel Parts

05 - Unit Parts

Select Diagram ... 01 - Cabinet Liner And Door Parts 02 - Evaporator Ice Cutter Grid And Water Parts 03 - Pump Parts 04 - Control Panel Parts 05 - Unit Parts

05 - Unit Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP2185532	Bracket, Fan Mtg.	$54.70 Special Order
2	2185675	Pad, Foam	$6.60 Special Order
3	WP2190685	Blade, Fan (Replaces: 2190685)	$52.60 Special Order
4	W10822259	Motor, Fan	$183.70  In-Stock Retail: $179.13

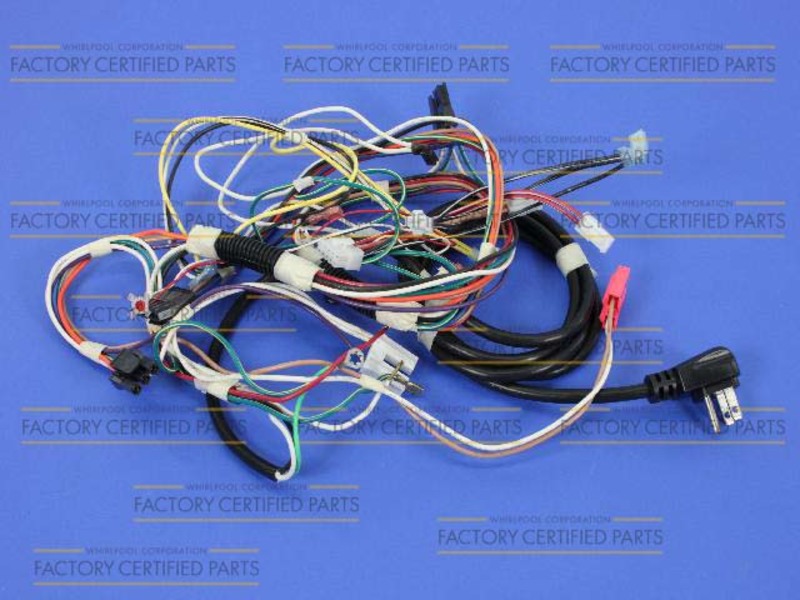

5	2187834	Wiring Harness, Complete Unit (includes Power Cord)	$111.10 Special Order
6	WP489069	Screw 8-18 X 1/2	$4.50 Special Order
7	WPW10605286	Compressor	$491.70  In-Stock Retail: $479.67
8	A201435	Clip, Mounting	$5.40 Special Order
9	A201441	Shim (4)	$5.40 Special Order
10	2185960	Clamp (power Cord)	$6.70 Special Order
11	2185965	Grommet (4)	$14.20 Special Order
12	W10528572	Tube, Process	$22.80 Special Order
13	WP999367	Screw	$4.50 Special Order
14	489472	Screw	$7.70 Special Order
15	759112	Coil, Solenoid	$58.00 Special Order
16	W10724988	Valve, Body   (Replaces: 2208413)	$212.40 Special Order
17	2187267	Wiring Harness, Condenser Fan	$11.20 Special Order
18	WP2217223	Overload	$77.50 Special Order
19	2217322	Twist Loc	$4.40 Special Order
20	WP2217224	Relay, Start (Replaces: 2217224)	$59.30 Special Order
21	WP2162358	Cover, Terminal	$55.80 Special Order
22	W11456069	Clamp   (Replaces: 2185788)	$13.00  In-Stock Retail: $12.59
23	W10843121	Drier	$31.80  In-Stock Retail: $30.99

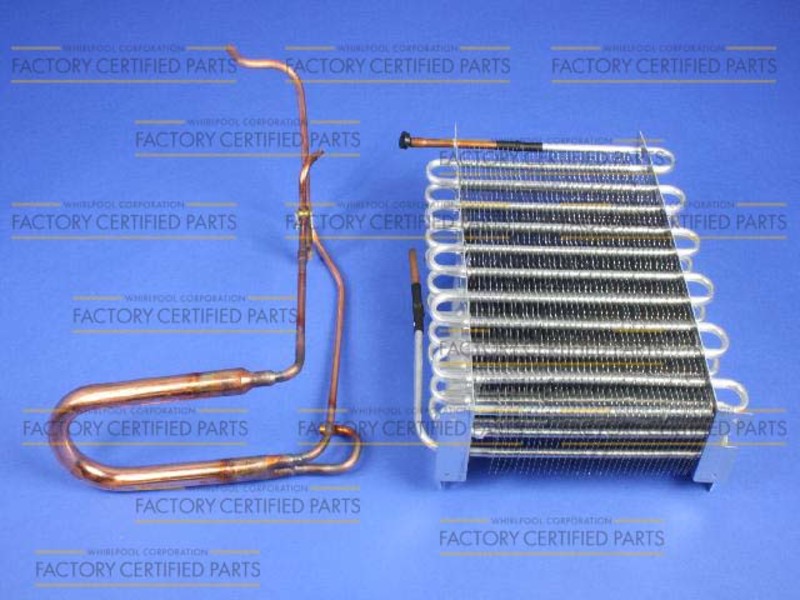

24	8201810	Condenser	$231.00  In-Stock Retail: $225.27
25	WP3400884	Screw	$4.50 Special Order
27	2217397	Pad, Foam (2)	$50.30 Special Order
30	2217445	Base, Unit	$91.50 Special Order
32	WP486692	Nut, Speed   (Replaces: 486692)	$4.50 Special Order
33	WP8281196	Screw 8-32 X 3/4	$4.50  In-Stock Retail: $4.33
