Whirlpool KUDP02IRBL1 Parts List

Popular Searches: (Click to search)    assembly  balance  bracket  door  drain  electronic  fill  fuse  hose  link  paint  pressurized  pump  spray  thermal  touch  undercounter  valve  wheel  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel Parts

03 - Door And Latch Parts

04 - Lower Washarm And Strainer Parts

05 - Heater Parts

06 - Fill And Overfill Parts

07 - Tub And Frame Parts

08 - Pump And Motor Parts

09 - Upper Rack And Track Parts

10 - Upper Wash And Rinse Parts

11 - Lower Rack Parts, Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel Parts 03 - Door And Latch Parts 04 - Lower Washarm And Strainer Parts 05 - Heater Parts 06 - Fill And Overfill Parts 07 - Tub And Frame Parts 08 - Pump And Motor Parts 09 - Upper Rack And Track Parts 10 - Upper Wash And Rinse Parts 11 - Lower Rack Parts, Optional Parts (not Included)

09 - Upper Rack And Track Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10727422	Dishrack, Upper	Call for Availability

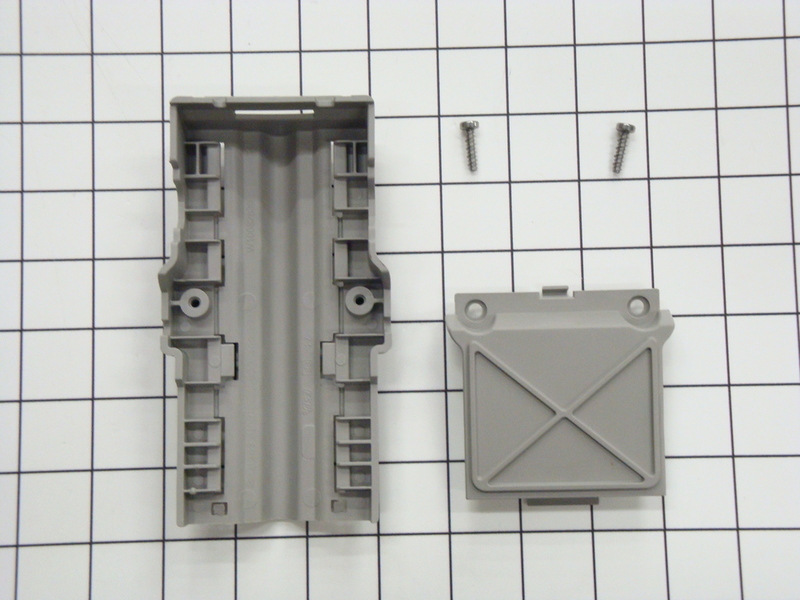

2	8193741	Housing, Adjuster	Call for Availability

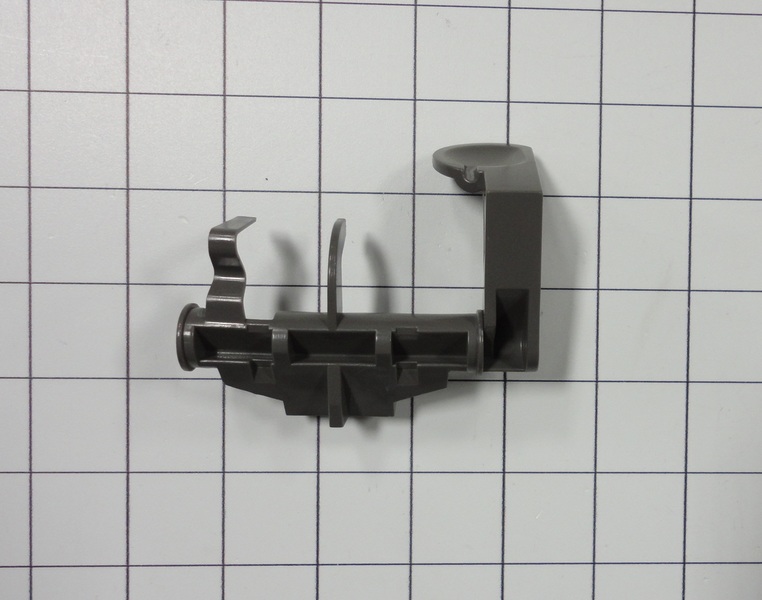

3	8531309	Actuator, Adjuster (left Hand)	Call for Availability

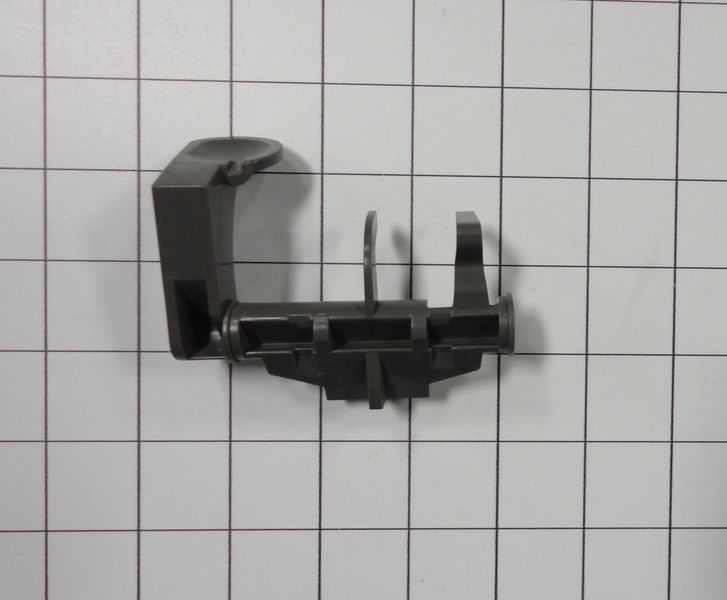

	8531310	Actuator, Adjuster (right Hand)	Call for Availability
4	W10728567	Adjuster Assembly (Replaces: 8268653)	Call for Availability
5	WP8270138	Wheel (Replaces: 8270138)	Call for Availability
6	WP8268703	Axel, Adjuster	Call for Availability
7	WP8281156	Screw	Call for Availability
8	W10727426	Tine Row (Replaces: 9744566)	Call for Availability
9	WP8539190	Clip, Pivot (Replaces: 8539190)	Call for Availability
12	WP8539102	Positioner, Dual (Replaces: 8539102)	Call for Availability
14	8193741	Cover, Adjuster	Call for Availability
15	WP9741232	Retainer	Call for Availability
16	WP8268738	Positioner, Arm	Call for Availability
17	WP8539101	Clip, No-flip (Replaces: 8539101)	Call for Availability
18	WPW10247511	Track, Assembly (right Hand)	Call for Availability
	WPW10247512	Track, Assembly (left Hand (also Order Item 21))   (Replaces: 8564923)	Call for Availability
19	8270137	Mount, Track (also Order Item 21)	Call for Availability
20	WP8573954	Stop, Track (right)   (Replaces: 8573954)	Call for Availability
	WP8573953	Stop, Track (left)	Call for Availability
21	WP9743002	Gasket, Bracket Mounting (Replaces: 9743002)	Call for Availability
22	WPW10348407	Screw (8)	Call for Availability
23	8193945	Handle, Dishrack	Call for Availability
24	W11125975	Cupshelf	Call for Availability
25	8270025	Clip, Cupshelf	Call for Availability
