02 - Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP8531267	Console Assembly (includes Insert & Medallion)	$146.10 Special Order

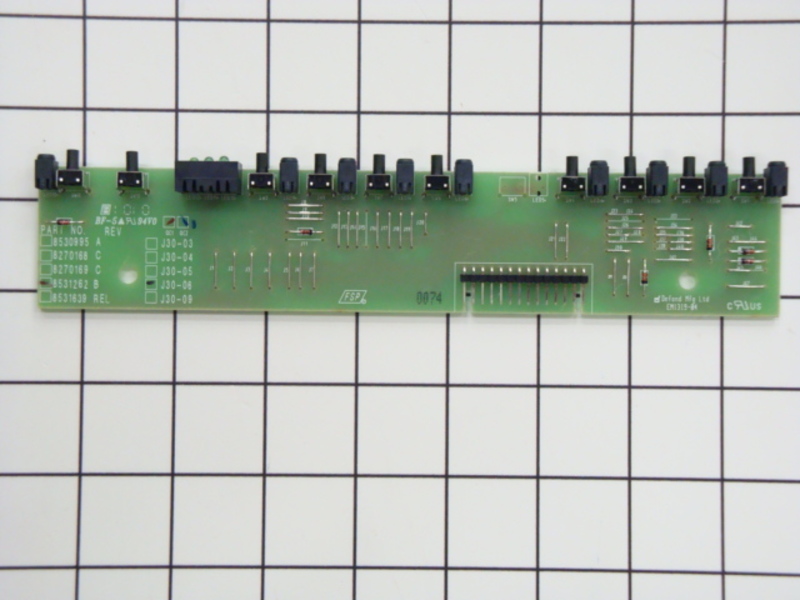

2	WP8531262	User Interface (Replaces: 8531262)	$191.70 Special Order
3	WP8524447	Ribbon Cable (Replaces: 8524447)	$120.10 Special Order
4	8524547	Shield	Call for Availability
5	8524426	Medallion	$33.20 Special Order
6	8193762	Fuse, Thermal Electronic (Replaces: 8269213)	$25.70  In-Stock Retail: $25.00
7	WP3400412	Screw	$4.50 Special Order
8	WPW10348409	Screw (4) (Replaces: W10348409 3369051)	$4.50  In-Stock Retail: $4.33
9	8193830	Latch Assembly (Replaces: 8270175)	$108.50  In-Stock Retail: $105.78
11	WP8564543	Control, Electronic   (Replaces: 8534963)	$188.10  In-Stock Retail: $188.04
12	WP8269209	Switch, Door (Replaces: 8269209)	$23.10  In-Stock Retail: $22.46
