Whirlpool KUDL03IVWH4 Parts List

Popular Searches: (Click to search)    assembly  balance  black  bracket  cable  chopper  control  dispenser  door  drain  hose  latch  metal  paint  pressurized  pump  spray  touch  undercounter  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Lower Washarm And Strainer Parts

12 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Lower Washarm And Strainer Parts 12 - Optional Parts (not Included)

09 - Upper Rack And Track Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10350382	Dishrack, Upper	$210.80  In-Stock Retail: $205.63

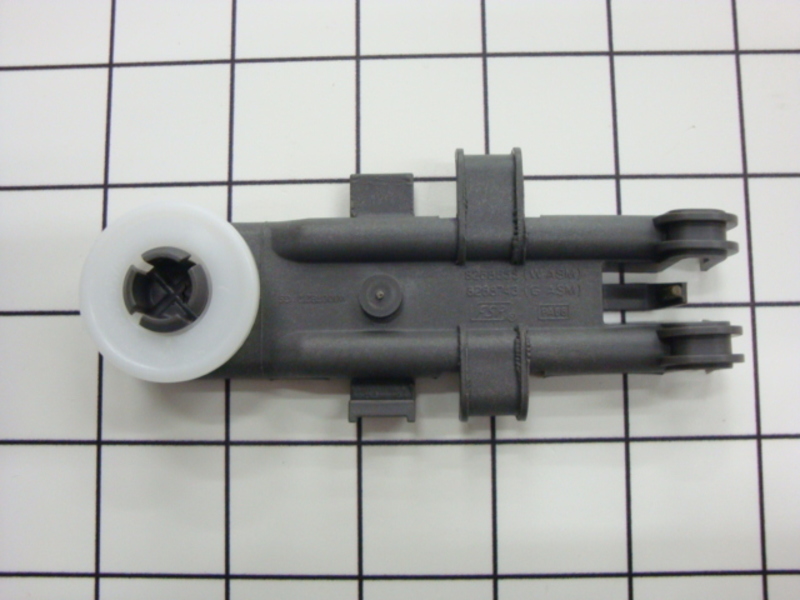

2	WPW10078214	Mount, Wheel Stationary (Replaces: W10078214)	$22.40 Special Order
3	WP3385089	Track Rack   (Replaces: 3385089)	$52.20  In-Stock Retail: $50.87
4	WP8565925	Stop, Track	$4.40  In-Stock Retail: $4.20
5	8193945	Handle, Dishrack	$43.50 Special Order
6	WPW10077844	Clip, No Flip (Replaces: W10077844)	$6.30 Special Order
7	WPW10267076	Clip, Dispenser Guard   (Replaces: W10267076)	$17.60  In-Stock Retail: $17.17
