Maytag PAV3300AGW Parts List

Popular Searches: (Click to search) assembly bearing cam cap dust hinge hose hub kit nut pulley pump replacement seal snubber spring thrust tran trans tub

Select a Diagram

01 - Base

02 - Base (series 19)

03 - Cabinet

04 - Control Panel

05 - Supplemental Information

06 - Top

07 - Transmission

08 - Transmission (series 22)

09 - Tub

10 - Wiring Information

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	21001897	Panel, Control (wht) (Series: 10)	Call for Availability
2	WP90767	Screw (Series: 10)	$4.50 In-Stock Retail: $4.33
	21001519	End Cap (lt-wht) (Series: 10)	$19.00 Special Order
3	21001523	End Cap (rt-wht) (Series: 10)	$12.70 Special Order
	WP90767	Screw (Series: 10)	$4.50 In-Stock Retail: $4.33
4	21001491	Switch, Water Temperature (Series: 10)	$21.60 Special Order
	WP90767	Screw (Series: 10)	$4.50 In-Stock Retail: $4.33
5	WP90767	Screw (Series: 10)	$4.50 In-Stock Retail: $4.33
	21001882	Switch, Pressure (emz) (Series: 10)	Call for Availability

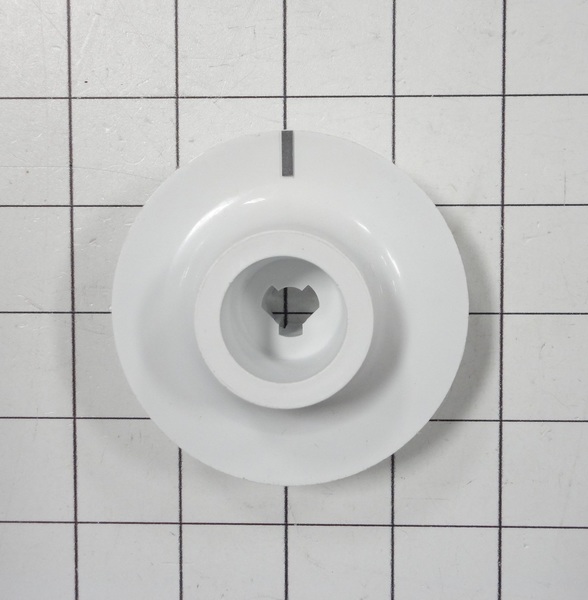

6	21001600	Skirt, Timer (wht) (Series: 10)	$60.70 Special Order

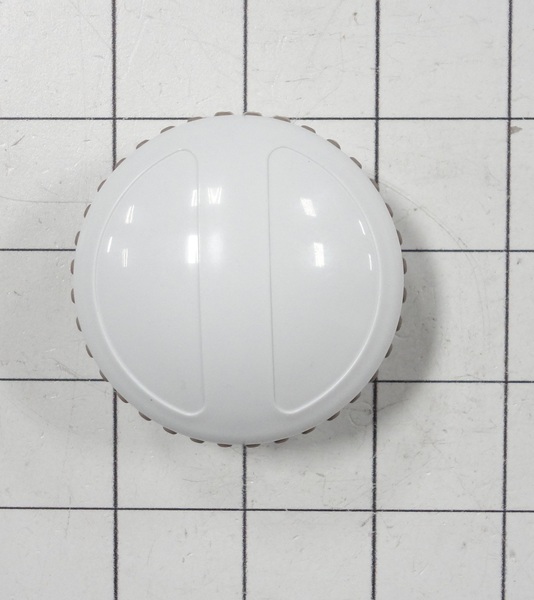

7	WP21001972	Knob, Timer (wht) (Series: 10)	$31.80 Special Order
8	21001898	Switch, Speed (3 Pos) (Series: 10)	$16.40 Special Order
	WP90767	Screw (Series: 10)	$4.50 In-Stock Retail: $4.33
9	21002005	Frame (wht) / Console (Series: 10)	$31.80 Special Order
10	21001527	Shield, Rear (back Panel) (Series: 10)	$21.10 Special Order
11	WP90767	Screw (Series: 10)	$4.50 In-Stock Retail: $4.33
	21001899	Timer (Series: 10)	$139.10 Special Order
12	WP21002196	Knob, Selector (wht) (Series: 10) (Replaces: 21001525)	$26.10 Special Order
13	21001900	Harness, Wire (Series: 10)	$32.40 Special Order
	21001457	Fuse (Series: 10)	$21.50 Special Order
	10091101	Holder, Fuse (Series: 10)	$41.80 Special Order
