Frigidaire LFFU17F5HWE Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    115v  assy  cap  control  defrost  electronic  exchanger  handle  heat  key  lock  mounting  ramp  screw  shoulder  suct  switch  thermostat  tube  white


Select a Diagram

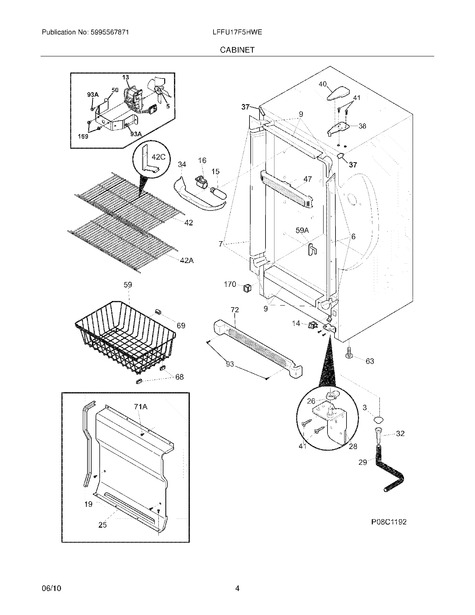

05 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
3 216503100 Screen-drain $44.10
Special Order
F5 216325600 Fan Blade $41.60
Special Order
6 297200600 Breaker Kit W/corners,no Lock Slot $40.00
Special Order
7 297200800 Breaker Kit W/corners,incl Lock Catch $60.80
Special Order
9 297200100 Breaker Kit W/corners,32`` ,top And Bottom $42.10
Special Order
F13 297309000 Motor,fan ,115 V   (Replaces: 297250000) $39.60
 In-Stock
Retail: $38.54
14 216822900 216822900 Switch,light/lamp ,ramp
(Replaces: 216998000) 		$50.80
 In-Stock
Retail: $49.49
15 216846400 216846400 Light Bulb/lamp $45.10
Special Order
16 297139500 297139500 Socket,light/lamp $12.90
Special Order
19 216204900 216204900 Gasket, Evap Cover $33.50
Special Order
25 297098851 Cover-evaporator $61.70
Special Order
26 216503300 216503300 Ramp,door Closer $6.30
Special Order
28 297283900 297283900 Hinge-bottom,stepped Pin $38.50
Special Order
29 216313500 216313500 Hose-drain
(Replaces: 216313501) 		$11.30
Special Order
32 5304511843 5304511843 Drain
(Replaces: 5308005500) 		$9.80
 In-Stock
Retail: $9.49
34 297184400 297184400 Shield-light $15.40
Special Order
37 297273900 Trim-cabinet Corner,white ,(2) $5.00
Special Order
38 297283800 Hinge-upper $13.90
Special Order
40 297164400 297164400 Cover-hinge $8.80
 In-Stock
Retail: $8.49
41 297236200 Screw,tamper Proof ,1/4-20 X 5/8 $10.30
Special Order
42 216458400 Shelf,14.50x27.88 ,(3) $68.20
Special Order
42A 297119501 Shelf,12.50x27.88 ,white $46.70
Special Order
42C 297183702 297183702 Divider,blue ,wire Shelf $10.30
Special Order
47 297192900 Baffle,air $18.00
Special Order
50 216394050 216394050 Bracket,fan Motor Mount $15.40
Special Order
59 297344000 Basket,bottom Call for Availability
59A 216486500 Stop-basket,(2) $13.90
Special Order
63 216396900 216396900 Screw, Leveling Foot, Plastic, Adjustable $17.00
Special Order
68 08009560 Glide, Basket $25.50
Special Order
69 5305878546 Bumper, Basket $5.20
Special Order
71A 297146820 Screw,8-18ab X.470 Qx Call for Availability
72 297198900 Grille/kickplate,32`` ,white $22.30
Special Order
93 216858001 216858001 Screw,ph Truss Head ,8-18ab X 0.500
(Replaces: 5304460605) 		$7.70
 In-Stock
Retail: $7.49
93A 297174300 Screw,no.8 ,18x.63 $7.00
Special Order
169 216912401 Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2) $9.30
Special Order
170 297280400 297280400 Valve,breather $7.20
Special Order
NI 5303305324 Paint, Touch-up, White Call for Availability
297164650 Bracket,lh Leg Levelor Call for Availability
297164651 Bracket,rh Leg Levelor Call for Availability
216327800 216327800 Clip,wire Call for Availability
216795415 Energy Guide $0.70
Special Order
297001704 Insulation,24`` ,drain Tube $14.40
Special Order
297241400 Label,ez Start Guide Call for Availability
216502400 Grommet-shelf Mtg $11.80
 In-Stock
Retail: $11.49
