Maytag MSB2554DRW Parts List

Popular Searches: (Click to search)    assy23  closer  defrost  door  drain  drier  evaporator  exch  fan  hinge  lower  motor  natural  pan  pin  screw  thermostat  timer  valve  water


Select a Diagram

01 - Compressor

02 - Controls

03 - Freezer Compartment

04 - Freezer Inner Door

05 - Freezer Outer Door

06 - Fresh Food Inner Door

07 - Fresh Food Outer Door

08 - Optional Ice Maker Kit-uki2000axx

09 - Shelves & Accessories

10 - Wiring Information

Select Diagram ... 01 - Compressor 02 - Controls 03 - Freezer Compartment 04 - Freezer Inner Door 05 - Freezer Outer Door 06 - Fresh Food Inner Door 07 - Fresh Food Outer Door 08 - Optional Ice Maker Kit-uki2000axx 09 - Shelves & Accessories 10 - Wiring Information

02 - Controls   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	61003228	Foil, Heat Shield (Series: 10)	$1.50 Special Order
	WP61005989	Housing Assy., Auto Damper (Series: 10)	$86.10 Special Order
	61004424	Screw (Series: 10)	$4.40 Special Order
2	WPW10348409	Screw (no.8 Ab) (Series: 10)	$4.50  In-Stock Retail: $4.33

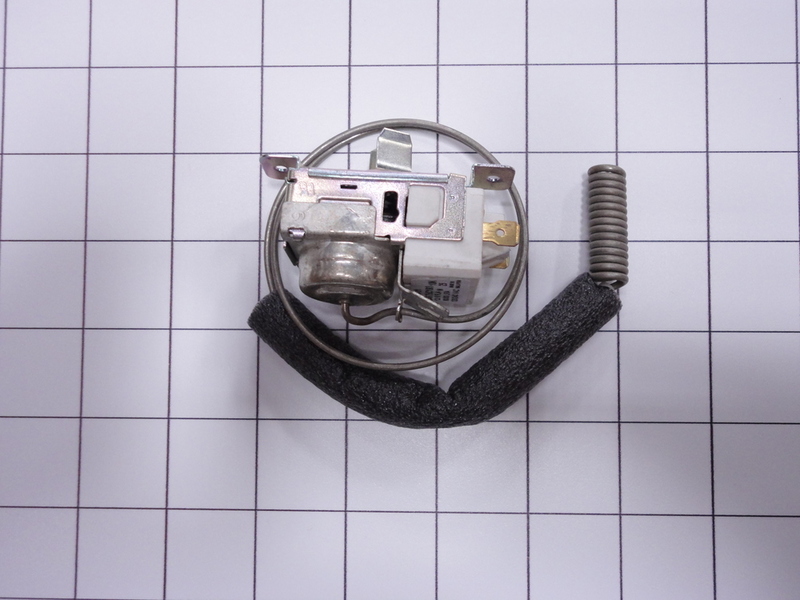

3	WP61005516	Control Assy., Temperature (Series: 10) (Replaces: 61003123)	$136.80  In-Stock Retail: $133.46
	W11233072	Screw (Series: 10)	$8.20  In-Stock Retail: $7.99
4	61003287	Rod, Damper Control (Series: 10)	Call for Availability
5	61003293	Rod, Temp. Control (Series: 10)	$21.50 Special Order
6	61004591	End Cap, Control Rod (Series: 10)	$4.40 Special Order
7	61003305	Gear, Control Slide (Series: 10)	$4.40 Special Order
8	61003359	Screw (Series: 10)	$0.40 Special Order
	WP61005989	Damper, Auto (Series: 10)	$86.10 Special Order
9	61003358	Washer, Damper Rod (Series: 10)	$4.40 Special Order
10	61003141	Spring, Damper Door (Series: 10)	Call for Availability

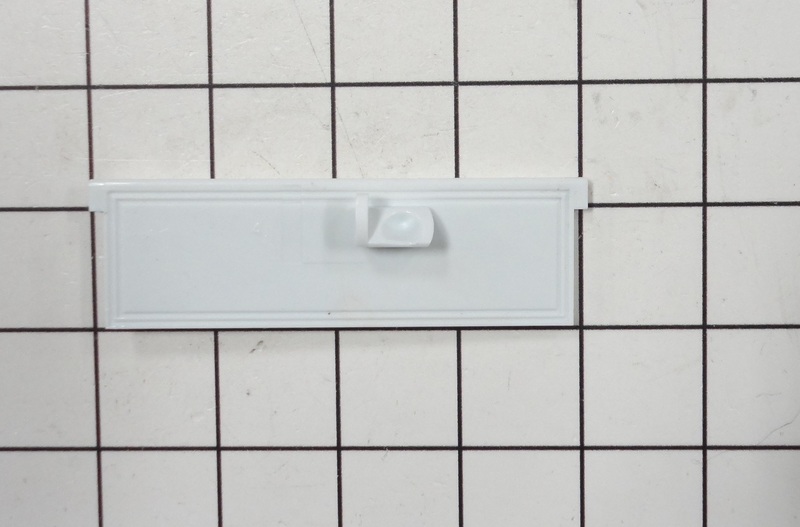

11	61003235	Door, Damper (Series: 10)	$50.60 Special Order
12	61003315	Support, Temp. Control (Series: 10)	Call for Availability
13	405007-1	Screw (Series: 10)	$0.40 Special Order
	WP68233-2	Timer, Defrost (Series: 10) (Replaces: 68233-2)	$118.60 Special Order
14	61003229	Insulation, Discharge (lt) (Series: 10)	$21.50 Special Order
	61003230	Insulation, Discharge (rt) (Series: 10)	$30.60 Special Order
15	67002286	Seal, Tunnel To Housing (Series: 10)	$16.30 Special Order
	61003231	Tunnel, Control Housing (Series: 10)	$18.10 Special Order
16	61003819	Seal, Tunnel (Series: 10)	$19.00 Special Order
17	2005042	Receptacle, Bulb (Series: 10)	$34.30 Special Order
18	WPA3073101	Bulb, Light (Series: 10) (Replaces: WP61003236 WP2326255 61003236)	$7.50  In-Stock Retail: $7.29
	61005974	Barrier, Foil (rt) (Series: 10)	$13.20 Special Order
	61005975	Barrier, Foil (lt) (Series: 10)	$9.40 Special Order
19	61003238	Shield, Heat (Series: 10)	$10.10 Special Order
20	W11384469	Switch, Light (Series: 10) (Replaces: WP1118894 66987-1)	$21.60  In-Stock Retail: $21.02
21	61004379	Shield, Light (Series: 10)	$62.10 Special Order
22	61003316	Retainer, Control Rod (Series: 10)	$4.40 Special Order
23	61004380	Panel, Control (Series: 10)	$78.60 Special Order
	61004424	Screw (Series: 10)	$4.40 Special Order
24	61004590	Grill, Light (Series: 10)	Call for Availability
25	61003233	Wire Harness, Frz./f.f. (Series: 10)	$21.70 Special Order
	61004289	Wire Harness, Controls (Series: 10)	$24.80 Special Order
