Maytag MHWE500VW00 Parts List

Popular Searches: (Click to search)    2oz  absorber  board  control  door  drain  expansion  extension  filter  flowmeter  hose  inner  interference  lock  paint  pressure  shock  switch  touch  white


Select a Diagram

01 - Top And Cabinet Parts

02 - Door And Latch Parts

03 - Control Panel Parts

04 - Dispenser Parts

05 - Tub And Basket Parts

06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)

Select Diagram ... 01 - Top And Cabinet Parts 02 - Door And Latch Parts 03 - Control Panel Parts 04 - Dispenser Parts 05 - Tub And Basket Parts 06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)

03 - Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10189234	Panel, Control (white)	$287.80 Special Order
	W10176643	Panel, Control (green)	$353.00 Special Order
2	W10164576	Knob, Control	$35.00  In-Stock Retail: $34.05
3	W11230114	Screw	$8.20  In-Stock Retail: $7.99
4	W10172298	Bushing, Knob	$11.00 Special Order
5	W10164567	Light Guide, Cycle	$47.10 Special Order
6	W11038849	User Interface,	$221.50 Special Order
7	WP8540282	Screw (Replaces: 8540282)	$7.20  In-Stock Retail: $6.96
8	8572039	Seal, User Interface	$13.30 Special Order
9	W10170293	Light Guide - Cycle, Internal	$55.30 Special Order
10	W10170295	Frame-light Guide	$17.00 Special Order
11	W10171504	Foil-display	$9.30 Special Order
12	W10164578	Light Guide - 3 Digit Display	$10.90 Special Order
13	W10171502	Frame-light (guide Display)	$11.20 Special Order
14	W10167292	Harness, Wiring (user Interface)	$100.80 Special Order
15	W10059240	Brace, Front Top	$119.80 Special Order
16	WP8183204	Channel, Water	$105.80 Special Order
17	WP489442	Screw	$6.30 Special Order
18	W10167278	Harness, Wiring (upper Main)	$207.80 Special Order

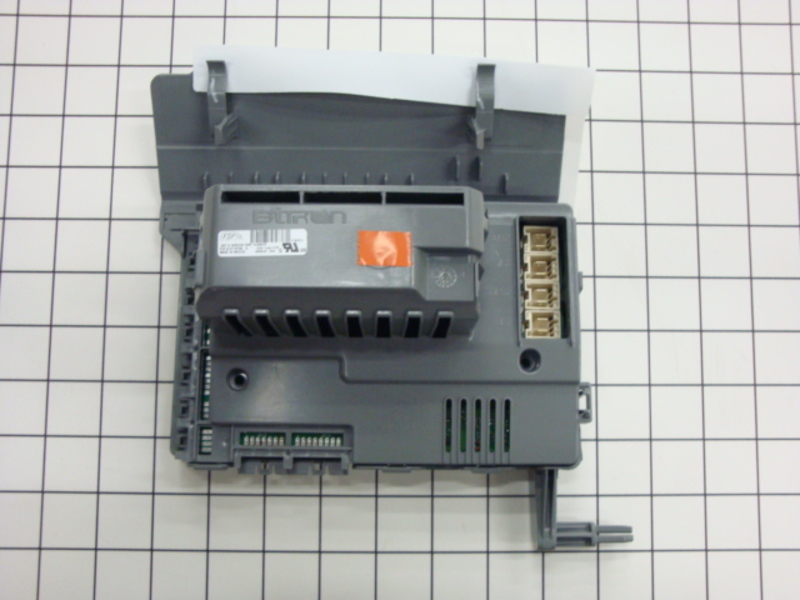

19	W10175764	Microcomputer, Machine Control	Call for Availability
