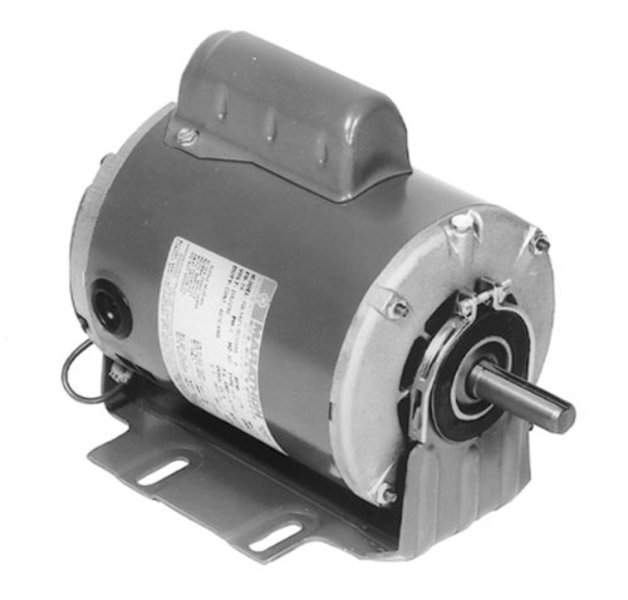

MOTOR 1725 RPM 1/4HP - 1725RPM 115 / 230V 48Z F
Your Price: $128.70
Retail: $178.70
Stock Total: 0
BRAND Marathon Motors
MOUNTING Resilient Base - Extended Studs
DUTY Continuous
FRAME 48Y
VOLTS 115/208-230 @ 60 Hz
HORSEPOWER 1/4 @ 60 Hz
AMBIENT TEMP C 40
WEIGHT LBS 16
UL Recognized Construction and Protector
ROTATION Selective CCW
CSA Y
CATALOG NO. B313
60 HERTZ FL AMPS 5.2/2.8-2.6
ORIENTATION Horizontal
DRIVE END BEARING SIZE 6203
OPPOSITE END BEARING SIZE 6203
STARTING TYPE CAP START IND RUN
IP CODE 22
KVA-CODE M
OPPOSITE END BEARING Ball
BEARING-DRIVE-END Ball
RPM 1800 @ 60 Hz
SERVICE FACTOR 1.35 @ 60 Hz
PHASE 1
INSULATION CLASS B
ENCLOSURE DP
Kw @ 60 Hz 0.19
ASSEMBLY F1 Only
THERMAL PROTECTION Automatic Protector
MODEL NUMBER 48C17D2042
