Alliance AWN432SP113CW04 Parts List

Popular Searches: (Click to search)    200996p  agitate  and  any  assembly  belt  comment:  hub  idler  includes  item  kit  lip  not  other  seal  sealant  spin  than  use


Select a Diagram

Graphic Panel, Control Support Panel and Controls   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	D504009WP	End Panel (Comment: White; Left)	$16.40  In-Stock Retail: $16.40
2	D501086	Screw	Call for Availability
3	39905W	Top Cover (Comment: White)	$36.20 Special Order
4	35115	Temperature Switch (Comment: 3 position)	$16.40  In-Stock Retail: $16.31

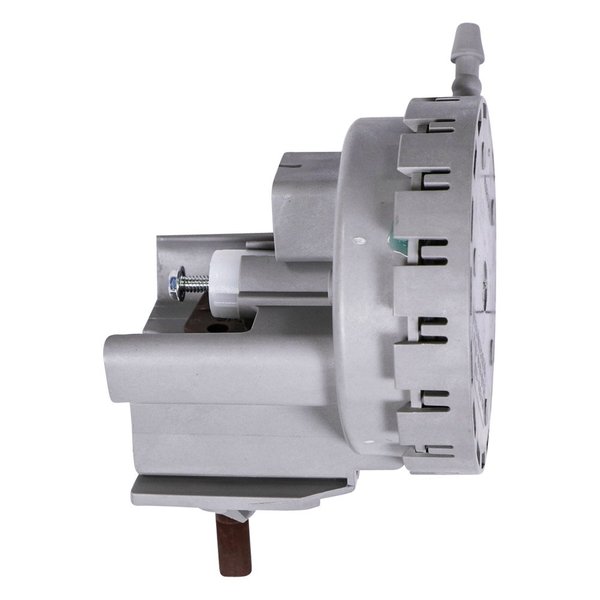

5	202937	Pressure Switch	$114.90  In-Stock Retail: $114.89
6	23962	Screw	$2.60 Special Order

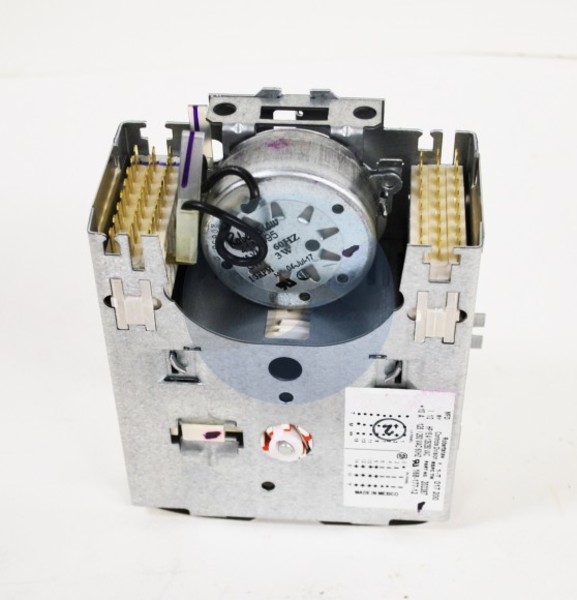

7	203387P	Timer	$120.70  In-Stock Retail: $120.69
8	D504008WP	End Panel (Comment: White; Right)	$14.30  In-Stock Retail: $14.21
9	35358	Hold-Down Clip	$5.20 Special Order
10	203713W	Graphic Panel	Call for Availability
11	38565	Control Support Panel	Call for Availability
12	00161	Grounding Clip	Call for Availability
13	803116	Timer Skirt Assembly	$6.80  In-Stock Retail: $6.78

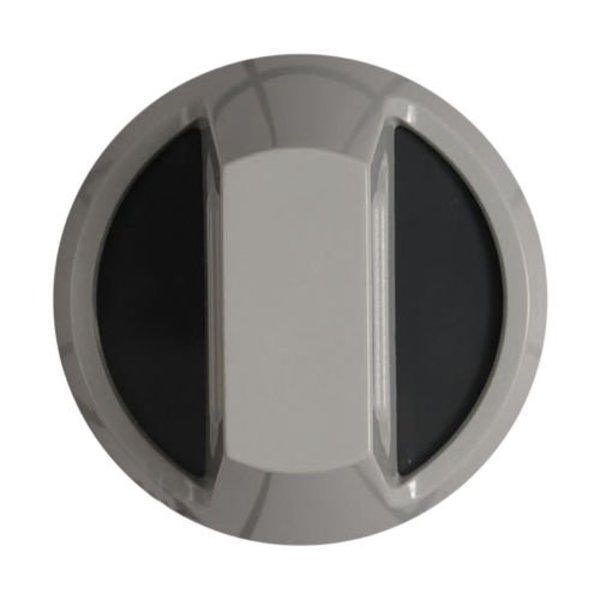

14	202133	Timer Knob Assembly	$15.50  In-Stock Retail: $15.46
15	38424W	Rocker Switch (Comment: White)	$6.50 Special Order
16	803118P	Knob Assembly	$6.00  In-Stock Retail: $5.95
17	803119P	Control Knob Assembly	$6.00  In-Stock Retail: $5.95
