Whirlpool 1CLSQ9549PG1 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    agitator  brake  breakdown  clutch  complete  coupling  dog  drive  for  further  gearcase  isolation  motor  page  paint  pump  refer  switch  tube  white


Select a Diagram


02 - Controls And Rear Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 WP16123 Washer, Water Inlet Hose (4) 1-1/16 X 5/8 $4.50
Special Order
2 3400073 Screw, Ground $5.40
Special Order
3 WP89503 WP89503 Hose, Water Inlet (2) (red Coupler) $7.80
 In-Stock
Retail: $11.98
WP89503 WP89503 Hose, Water Inlet (2) (blue Coupler) $7.80
 In-Stock
Retail: $11.98
4 WP9740848 Screw, 8-18 X 1/2 $4.50
Special Order
5 WP8568314 Strap, Console (2)   (Replaces: 8568314) $4.50
Special Order
6 8318015 Panel, Rear $116.10
Special Order
7 WP62747 WP62747 Pad, Rear Panel $14.40
Special Order
8 WPW10096921 Drain Hose Assembly (includes Illus. Nos. 27 & 28)   (Replaces: W10141705 W10138510 8559373) $43.10
 In-Stock
Retail: $41.97

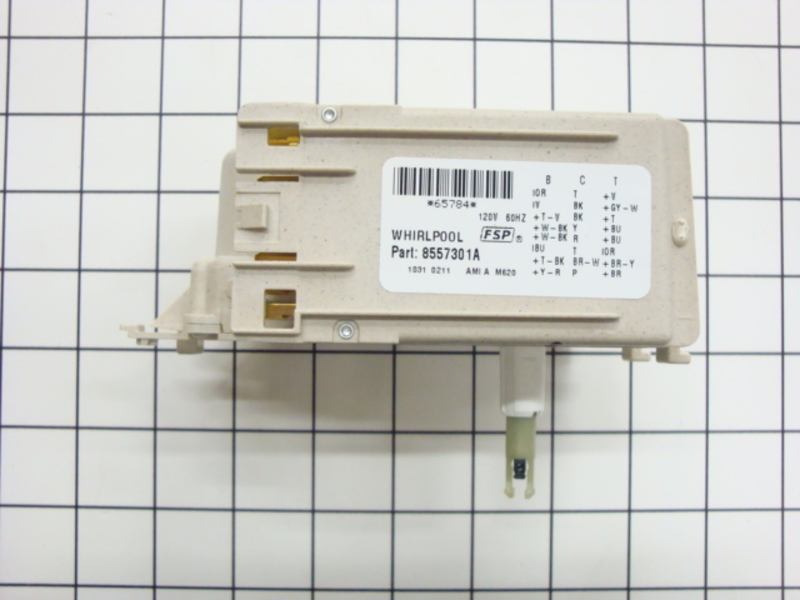

9 WP8557301 WP8557301 Timer, Control (60 Hz.) (motor Not A Service Part)
(Replaces: 8557301)
$225.10
Special Order
10 WP3351614 WP3351614 Screw, Ground $4.50
Special Order
11 WP90767 Screw, 8-18 X 3/8   (Replaces: 90767) $4.50
 In-Stock
Retail: $4.33
12 W10339326 W10339326 Switch, Water Level
(Replaces: 3366845)
$67.40
 In-Stock
Retail: $65.71
13 8544893 Bracket, Control Call for Availability
14 661661 Cord, Power (includes Illus. 15) $20.80
Special Order
15 285777 Strain Relief, Power Cord $4.50
Special Order
16 W10820038 Cap, End (l.h.) (white) $48.60
Special Order
279965 Cap, End (l.h.) (biscuit) $40.30
Special Order
17 8318046 8318046 Clip, Capacitor $55.30
Special Order
18 WP3979346 WP3979346 Valve, Water Inlet & Thermistor Assy.
(Replaces: 3979347)
$66.80
 In-Stock
Retail: $65.08
20 WP694419 Buzzer, Mini   (Replaces: 694419) $75.90
 In-Stock
Retail: $73.98
21 WP596669 WP596669 Clamp, Hose $4.50
 In-Stock
Retail: $4.33
22 WP8317926 Hose, Vacuum Break $12.60
 In-Stock
Retail: $12.24
23 WP596669 WP596669 Clamp, Hose $4.50
 In-Stock
Retail: $4.33
24 WP3360977 WP3360977 Break, Vacuum
(Replaces: 387606)
$49.20
 In-Stock
Retail: $48.00
25 303294 Edge Protector $15.40
Special Order
26 WP8572717 WP8572717 Capacitor, Motor Start
(Replaces: 8572717)
$71.20
 In-Stock
Retail: $69.40
27 8541667 Clamp, Hose $4.10
Special Order
28 8541668 8541668 Clamp, Hose $13.00
Special Order
30 WP616099 WP616099 Clamp, Hose $4.10
Special Order
31 WP285655 WP285655 Clamp, Hose $4.50
 In-Stock
Retail: $4.33
32 285871 285871 Hose, Pump To Tub (includes Illus. 30)
(Replaces: 3951449)
$14.40
 In-Stock
Retail: $14.03
33 8055003 Clip, Harness & Pressure Hose $46.50
Special Order
34 8317975 Retainer, Harness $4.10
Special Order
35 WP8564140 WP8564140 Switch, Water Temperature (atc)
(Replaces: 8564140)
$70.20
Special Order
36 WP3400818 Screw, Timer Mounting $4.50
Special Order
37 WPW10168257 WPW10168257 Switch-rotary $79.20
 In-Stock
Retail: $77.26
38 WPW10168262 WPW10168262 Switch, Rotary
(Replaces: 3949187)
$77.10
Special Order
39 3956587 Panel, Console (includes Illus. 40) (gold) $97.80
Special Order
3956586 Panel, Console (includes Illus. 40) (silver) $97.80
Special Order
40 3400985 Medallion $32.80
Special Order
42 WPW10096921 Bucket, Drain Hose $43.10
 In-Stock
Retail: $41.97
43 WPW10096921 Bucket, Drain Hose $43.10
 In-Stock
Retail: $41.97
44 8544946 Knob, Timer (biscuit) $30.80
Special Order

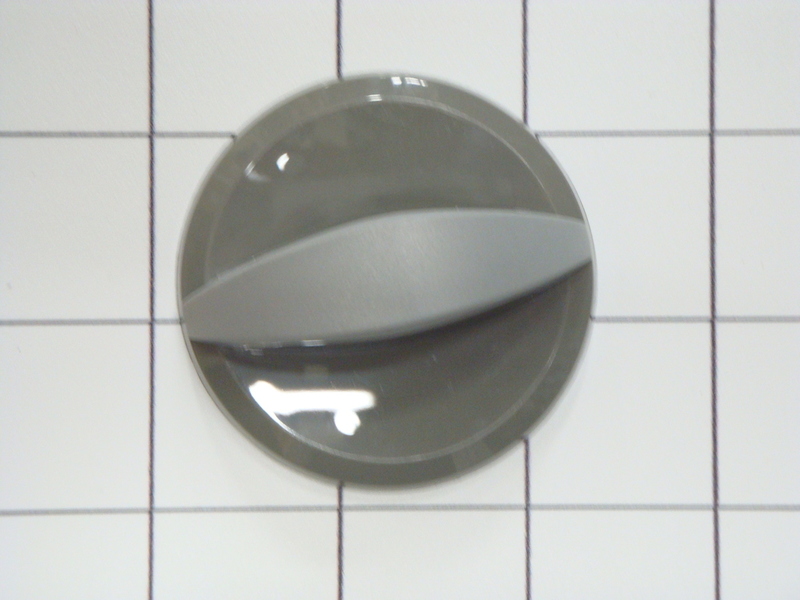

WP8544945 WP8544945 Knob, Timer (silver)
(Replaces: 8544945)
Call for Availability
45 8544948 Dial, Timer (biscuit) $36.90
Special Order
WP8544947 WP8544947 Dial, Timer (white)
(Replaces: 8544947)
$49.20
Special Order
46 WP8536939 WP8536939 Clip, Knob
(Replaces: 8536939)
$4.50
 In-Stock
Retail: $4.33
47 W10810477 W10810477 Knob, Control (biscuit) $43.40
Special Order
W10810477 W10810477 Knob, Control (silver)
(Replaces: WP8544937 8544937)
Call for Availability
49 WP388326 WP388326 Screw, 8-18 X 1.25 (panel To Top)
(Replaces: 388326)
$4.50
 In-Stock
Retail: $4.33
50 WP3390631 WP3390631 Screw, 10-16 X 3/8 $4.50
 In-Stock
Retail: $4.33
51 W10820038 Cap, End (r.h.) (white) $48.60
Special Order
279965 Cap, End (r.h.) (biscuit) $40.30
Special Order
53 WP8577378 WP8577378 U-bend, Drain Hose $4.50
Special Order
54 WPW10339879 WPW10339879 Cable Tie $4.50
 In-Stock
Retail: $4.33
55 8539874 Shield, Suds $4.50
Special Order
56 3957274 Harness, Wiring (for Detail See Pages 9 & 10) $102.10
Special Order
57 3957361 Miscellaneous Parts Bag $55.80
Special Order
WP8519200 WP8519200 Support, Rear Panel
(Replaces: 8519200)
$11.00
Special Order
N/A Following Parts Not Illustrated Call for Availability
