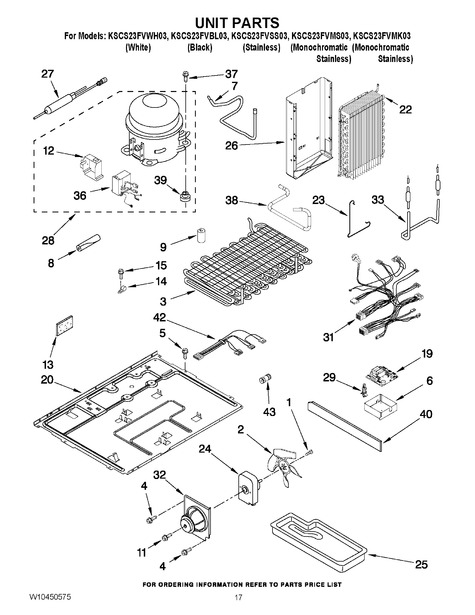

11 - Unit Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP489399	Screw	$4.50 Special Order
2	WPW10139483	Fan Blade (Replaces: W10139483)	$52.90  In-Stock Retail: $51.52
3	W10193018	Condenser Assembly	$215.10 Special Order
4	WP489427	Screw	$4.50  In-Stock Retail: $4.33
5	3400524	Screw (6)	$7.80 Special Order
6	2223703	Housing, Control Board	$76.10 Special Order
7	W10528579	Tube Suction	$205.90 Special Order
8	W11661094	Sleeve	$13.00 Special Order
9	W10852725	Grommet, Condenser (4)	$4.50  In-Stock Retail: $4.33
11	WPW10171469	Screw   (Replaces: W10171469)	$6.30 Special Order
12	2215676	Cover, Terminal	$52.90  In-Stock Retail: $51.52
13	W11553819	Insulation, Sound	$8.20  In-Stock Retail: $7.99
14	2185960	Clamp, Cable	$6.70 Special Order
15	WPW10141625	Screw	$12.80 Special Order
19	W10219463	Electronic Control	$237.10 Special Order
20	2306932	Baseplate	$140.90 Special Order
22	WP2188823	Evaporator   (Replaces: 2188823)	$229.50  In-Stock Retail: $223.90
23	WP2161324	Clamp	$6.40 Special Order
24	WP2188874	Fan, Motor (Replaces: 2188874)	$108.70  In-Stock Retail: $106.02
25	2223398	Tray, Evaporator	Call for Availability
26	2224022	Heat Shield	$130.20 Special Order
27	W10142759	Drier	Call for Availability
28	W10276644	Compressor (includes Items 12 & 39)	$430.30  In-Stock Retail: $409.76
29	2223800	Spacer (5)	$10.80 Special Order
31	WP2310122	Harness, Main Control	$162.70 Special Order
32	2224024	Fan, Motor Bracket	$39.30 Special Order
33	2323199	Heater, Defrost	$88.90 Special Order
36	WPW10154805	Inverter Box   (Replaces: W10154805)	$236.00  In-Stock Retail: $224.68
37	876811	Screw	$4.50 Special Order
38	W10858105	Tube, Process	$96.70 Special Order
39	876811	Grommet (4) (service)	$4.50 Special Order
40	2223394	Extension, Air Baffle	$56.50 Special Order
42	2310121	Unit Harness	$232.20 Special Order
43	WP2300868	Connector, Water Tube	$18.70  In-Stock Retail: $18.17
NI	978028	Valve, Access (1/2``)	Call for Availability
	978029	Valve, Access (5/8``)	$65.50 Special Order
	978030	Valve, Access (3/4``)	$74.20 Special Order
	876764	Valve, Access (3/16``)	$53.50  In-Stock Retail: $52.16
	N/P	Refrigerant Charge (6.00 Oz. (r-134a))	Call for Availability
	WP978025	Valve, Access (1/4``) (Replaces: 978025)	$57.90  In-Stock Retail: $56.43
	978026	Valve, Access (5/16``)	$69.30  In-Stock Retail: $67.59
	978027	Valve, Access (3/8``)	$70.70 Special Order
