Maytag MVWC400XW3 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    actuator  assembly  belt  drain  drive  hoses  includes  items  latch  lid  lock  paint  pressurized  pulley  pump  shift  splutch  spray  spring  white


Select a Diagram

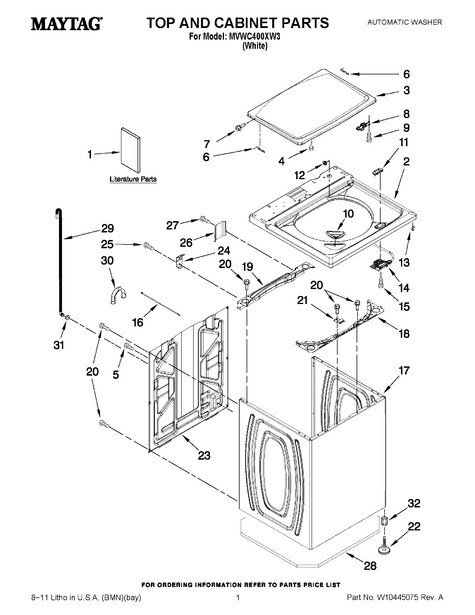

01 - Top And Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 W10338602 Quick Start Guide Call for Availability
W10280550 Use & Care Guide Call for Availability
W10062951 Energy Guide Call for Availability
W10240509 Installation Instructions Call for Availability
W10280489 Tech Sheet Call for Availability
W10280504 Instructions, Sound Shield Installation Call for Availability
2 WPW10251325 Top $125.70
Special Order
3 W10338624 W10338624 Lid (includes Item 4) $155.10
Special Order
4 WP9724509 WP9724509 Bumper, Lid
(Replaces: 9724509)
$4.50
 In-Stock
5 WP9740848 Screw, 8-18 X 1/2 $4.50
Special Order
6 WP91770 WP91770 Hinge, Lid
(Replaces: 91770)
$16.10
Special Order
7 WPW10119828 WPW10119828 Screw, Lid Hinge $4.50
 In-Stock
8 WPW10240513 WPW10240513 Strike, Lid Lock
(Replaces: W10240513)
$26.50
 In-Stock
9 WPW10273971 Screw, 6-19 X 1/2 $4.50
Special Order
10 WPW10192089 WPW10192089 Dispenser, Bleach
(Replaces: W10192089)
$4.50
Special Order
11 WPW10392041 Bezel, Lid Lock   (Replaces: W10392041) $4.50
 In-Stock
12 WP21258 WP21258 Bearing, Lid Hinge
(Replaces: 21258)
$4.50
 In-Stock
13 WP90016 Clip, Lid Lock Harness $6.60
Special Order
14 W10404050 W10404050 Latch, Lid Lock Assembly
(Replaces: W10238287)
$53.00
 In-Stock
15 WP8281163 WP8281163 Screw, 8-16 X 1/2
(Replaces: 8281163)
$6.30
Special Order
16 WPW10339879 WPW10339879 Cable Tie $4.50
Special Order
17 W10596395 Cabinet (includes Item 22) $240.40
Special Order
18 WPW10215098 Brace, Cabinet (top - Front) $71.90
Special Order
19 W10512626 Brace, Cabinet (top - Rear)   (Replaces: W10215099) $75.30
Special Order
20 WP489069 WP489069 Screw, 8-18 X 3/8 $4.50
Special Order
21 WPW10248088 WPW10248088 Lock, Top $10.90
Special Order
22 W10739673 W10739673 Foot Assembly, Leveling (includes Item 32) $7.50
 In-Stock
23 WPW10250884 Panel, Rear $125.60
Special Order
24 W10215102 Hinge, Top $15.40
Special Order
25 WP489128 Screw, 8-32 X 3/8 $6.30
 In-Stock
26 W10676061 Cover, Harness $21.50
Special Order
27 W10846509 Screw, 10-23 X 5/8 $4.50
Special Order
28 WPW10361353 Absorber, Sound - Cabinet Bottom   (Replaces: W10361353) $26.90
Special Order
29 W11244231 Hose, Outer Drain Assembly (includes Items 30 & 31)   (Replaces: W10826733 W10221546) $18.30
 In-Stock
30 WPW10280024 WPW10280024 U-bend, Drain Hose
(Replaces: W10280024)
$30.20
Special Order
31 WP356138 WP356138 Clamp, Hose
(Replaces: 356138)
$4.50
 In-Stock
32 WP3359452 WP3359452 Nut, Lock
(Replaces: 3359452)
$4.50
 In-Stock
