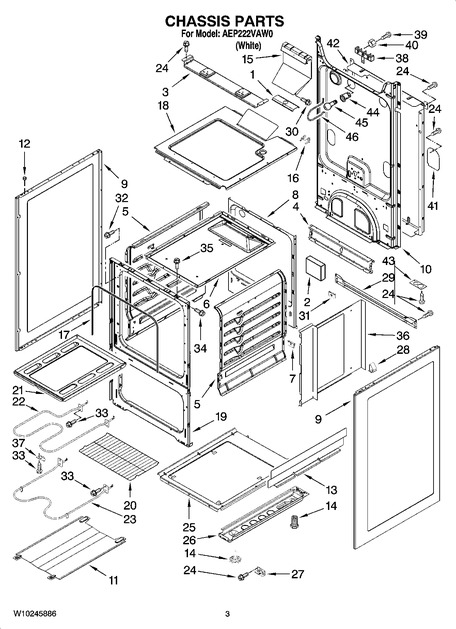

Select a Diagram
Hover over In-Stock to see individual location availability
| Item # |
Part # |
Description |
Price / Availability |
Add to Cart |
|
1 |
W10176276
|
Cover, Flue Box |
Call for Availability |
|
2 |
W10185442
|
Counter Weight (3) |
Call for Availability |
|
3 |
W10168363
|
Support, Burner |
Call for Availability |
|
4 |
98012912
|
Support, Oven |
Call for Availability |
|
5 |
98004452
|
Side, Oven (right Side) |
Call for Availability |
|
|
98004451
|
Side, Oven (left Side) |
Call for Availability |
|
6 |
98004448
|
Top, Oven |
Call for Availability |
|
7 |
98005502
|
Clip, Oven Botton |
Call for Availability |
|
8 |
W10175662
|
Cover, Rear |
Call for Availability |
|
9 |
98010061
|
Panel, Side |
Call for Availability |
|
10 |
W10166296
|
Back, Main |
Call for Availability |
|
11 |
98015099
|
Diverter, Heat |
Call for Availability |
|
12 |
W10207167
|
Bumper, Cooktop |
Call for Availability |
|
13 |
98007191
|
Shield, Heat (lower) |
Call for Availability |
|
14 |
WP3196037
|
Leg, Leveler (front (2)) |
Call for Availability |
|
|
WPW10058460
|
 Leg, Leveler (rear (2))
(Replaces: W10058460) |
Call for Availability |
|
15 |
WPW10116396
|
 Flue, Assembly |
Call for Availability |
|
16 |
98013690
|
Spring, Torsion (flue Box) |
Call for Availability |
|
17 |
W10170595
|
Seal, Door |
Call for Availability |
|
18 |
W10208539
|
Box, Burner |
Call for Availability |
|
19 |
98006752
|
Frame, Front |
Call for Availability |
|
20 |
W11223841
|
 Rack, Oven |
Call for Availability |
|
21 |
W10192836
|
Bottom, Oven |
Call for Availability |
|
22 |
W10170571
|
Element, Broil |
Call for Availability |
|
23 |
WPW10163272
|
 Element, Bake |
Call for Availability |
|
24 |
W10837731
|
Screw |
Call for Availability |
|
25 |
98003945
|
Baffle, Base |
Call for Availability |
|
26 |
98003830
|
Rail, Base |
Call for Availability |
|
27 |
98007126
|
Support, Foot |
Call for Availability |
|
28 |
WP98004722
|
 Clip, Cooktop
(Replaces: 98004722) |
Call for Availability |
|
29 |
98010054
|
Support, Rear |
Call for Availability |
|
30 |
98006634
|
Screw (5) |
Call for Availability |
|
31 |
98009179
|
U-nut |
Call for Availability |
|
32 |
WP98008545
|
 Screw (4)
(Replaces: 98008545) |
Call for Availability |
|
33 |
W11233072
|
 Screw |
Call for Availability |
|
34 |
WP3400805
|
 Screw (6) |
Call for Availability |
|
35 |
WP3400805
|
Screw (2) |
Call for Availability |
|
36 |
98017387
|
Baffle, Side |
Call for Availability |
|
37 |
98004973
|
Support, Element |
Call for Availability |
|
38 |
W10181453
|
 Block, Terminal |
Call for Availability |
|
39 |
W11684512
|
Screw |
Call for Availability |
|
40 |
WP112432
|
 Nut, Terminal Block |
Call for Availability |
|
41 |
W10209692
|
Cover, Terminal Block |
Call for Availability |
|
42 |
W10208152
|
Cover, Main Rear |
Call for Availability |
|
43 |
W10180177
|
Plate, Conduit |
Call for Availability |
|
44 |
W10856866
|
 Socket, Light |
Call for Availability |
|
45 |
8009
|
 Bulb, Light |
Call for Availability |
|
46 |
W10205700
|
Protector, Light |
Call for Availability |
|
NI |
W11684895
|
Insulation, Wrap |
Call for Availability |
|
|
W11684896
|
Insulation, Back |
Call for Availability |
|
|
W11684778
|
Insulation, Bottom |
Call for Availability |
|
|
W11684784
|
Insulation, Top |
Call for Availability |
|
|
98004294
|
Wire Tie, Insulation (2) |
Call for Availability |
