Maytag ABR1927VES10 Parts List

Popular Searches: (Click to search)    2oz  blade  board  control  damper  drawer  drier  evaporator  fan  motor  paint  pressurized  service  silicone  slide  spray  thermistor  touch  valve  white


Select a Diagram

01 - Cabinet Parts

02 - Refrigerator Liner Parts

03 - Freezer Liner Parts

04 - Refrigerator Door Parts

05 - Freezer Door Parts

06 - Shelf Parts

07 - Unit Parts

08 - Icemaker Parts, Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Refrigerator Liner Parts 03 - Freezer Liner Parts 04 - Refrigerator Door Parts 05 - Freezer Door Parts 06 - Shelf Parts 07 - Unit Parts 08 - Icemaker Parts, Optional Parts (not Included)

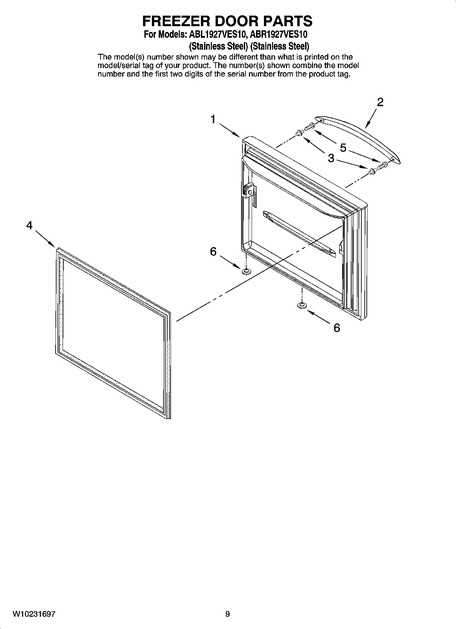

05 - Freezer Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	13092208SQ	Freezer Door (w/ Insulation) (stainless Steel)	$358.80 Special Order
2	W10159105	Handle (stainless)	$116.00 Special Order
3	WP67006113	Mount, Handle (Replaces: 67006113)	$7.00  In-Stock Retail: $6.76
4	WPW10436247	Gasket, Door	$180.80 Special Order
5	67006901	Screw, Handle	$4.50 Special Order
6	67004838	Plug, Vent	$6.60 Special Order
