1 |
WP16123
|
Washer, Water Inlet Hose (4) 1-1/16 X 5/8 |
Call for Availability |
|
2 |
WP9740848
|
Screw, 8-18 X 1/2 |
Call for Availability |
|
3 |
WP89503
|
 Hose, Water Inlet (2) (blue Coupler) |
Call for Availability |
|
|
WP89503
|
Hose, Water Inlet (2) (red Coupler) |
Call for Availability |
|
4 |
3179795
|
Screw, Ground |
Call for Availability |
|
5 |
WP8568314
|
Strap, Console (2) (Replaces: 8568314) |
Call for Availability |
|
6 |
8318015
|
Panel, Rear |
Call for Availability |
|
7 |
WP62747
|
 Pad, Rear Panel |
Call for Availability |
|
8 |
WPW10096921
|
Drain Hose Assembly (includes Items 17 & 19) (Replaces: W10141705 W10138510 8559373) |
Call for Availability |
|
9 |
WP3953146
|

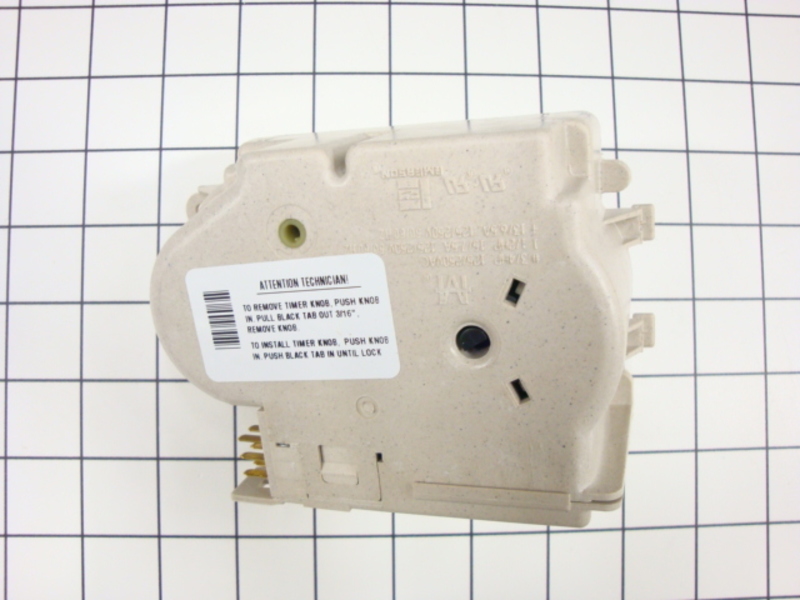

 Timer, Control (60 Hz.) (motor Not A Service Part)
(Replaces: 3953146) |
Call for Availability |
|
10 |
WP3351614
|
 Screw, Ground |
Call for Availability |
|
11 |
WP90767
|
Screw, 8-18 X 3/8 (Replaces: 90767) |
Call for Availability |
|
12 |
W10339228
|
 Switch, Water Level
(Replaces: 3366849) |
Call for Availability |
|
13 |
8544893
|
Bracket, Control |
Call for Availability |
|
14 |
WP8559419
|
Cord, Power (includes Item 15) |
Call for Availability |
|
15 |
285777
|
Strain Relief, Power Cord |
Call for Availability |
|
16 |
W10820038
|
Cap, End (l.h.) (white) |
Call for Availability |
|
|
8314852
|
Cap, End (l.h.) (biscuit) |
Call for Availability |
|
17 |
8541667
|
Clamp, Hose |
Call for Availability |
|
18 |
285805
|
 Valve, Water Mixing
(Replaces: 3952164) |
Call for Availability |
|
19 |
8541668
|
 Clamp, Hose |
Call for Availability |
|
20 |
8318046
|
 Clip, Capacitor |
Call for Availability |
|
21 |
WP596669
|
 Clamp, Hose |
Call for Availability |
|
22 |
WP3357328
|
 Hose, Vacuum Break |
Call for Availability |
|
23 |
WP596669
|
Clamp, Hose |
Call for Availability |
|
24 |
WP3360977
|
 Break, Vacuum
(Replaces: 387606) |
Call for Availability |
|
25 |
303294
|
Edge Protector |
Call for Availability |
|
26 |
WPW10096921
|
Bucket, Drain Hose |
Call for Availability |
|
27 |
WPW10096921
|
Bucket, Drain Hose |
Call for Availability |
|
28 |
WP8572717
|
 Capacitor, Motor Start
(Replaces: 661606) |
Call for Availability |
|
29 |
WP8519200
|
 Support, Rear Panel
(Replaces: 8519200) |
Call for Availability |
|
30 |
WP616099
|
 Clamp, Hose |
Call for Availability |
|
31 |
WP285655
|
 Clamp, Hose |
Call for Availability |
|
32 |
285871
|
 Hose, Pump To Tub
(Replaces: 3951449) |
Call for Availability |
|
33 |
8055003
|
Clip, Harness & Pressure Hose |
Call for Availability |
|
34 |
8317975
|
Retainer, Harness |
Call for Availability |
|
35 |
WPW10168256
|
 Switch, Water Temperature
(Replaces: 661612) |
Call for Availability |
|
36 |
WP3400818
|
Screw, Timer Mounting |
Call for Availability |
|
37 |
WP8577378
|
 U-bend, Drain Hose |
Call for Availability |
|
38 |
WP8536939
|
 Clip, Knob
(Replaces: 8536939) |
Call for Availability |
|
39 |
8539639
|
Panel, Console (white) |
Call for Availability |
|
|
8539640
|
Panel, Console (biscuit) |
Call for Availability |
|
41 |
W10113937
|
Clip, Grounding |
Call for Availability |
|
42 |
3395559
|
Wire, Ground |
Call for Availability |
|
43 |
WPW10339879
|
 Cable Tie |
Call for Availability |
|
44 |
W10877429
|
Knob, Timer (biscuit) |
Call for Availability |
|
|
WP8544943
|
 Knob, Timer (white)
(Replaces: 8544943) |
Call for Availability |
|
45 |
8544948
|
Dial, Timer (biscuit) |
Call for Availability |
|
|
WP8544947
|
 Dial, Timer (white)
(Replaces: 8544947) |
Call for Availability |
|
47 |
W10810477
|
 Knob, Control (biscuit) |
Call for Availability |
|
|
W10810477
|
Knob, Control (white)
(Replaces: 8544935) |
Call for Availability |
|
49 |
WP388326
|
 Screw, 8-18 X 1.25 (panel To Top)
(Replaces: 388326) |
Call for Availability |
|
50 |
WP3390631
|
 Screw, 10-16 X 3/8 |
Call for Availability |
|
51 |
8314851
|
Cap, End (r.h.) (biscuit) |
Call for Availability |
|
|
W10820038
|
Cap, End (r.h.) (white) |
Call for Availability |
|
52 |
8314879
|
Shield, Inlet Valve |
Call for Availability |
|
53 |
3956733
|
Wiring Harness (for Detail See Pages 9 & 10) |
Call for Availability |
