Whirlpool 5ED5FHKXVT00 Parts List

Popular Searches: (Click to search)    access  bin  cam  closer  crisper  defrost  door  grease  lower  meat  metal  paint  pan  pressurized  shelf  silicone  spray  touch  upper  white


Select a Diagram

01 - Cabinet Parts

02 - Refrigerator Liner Parts

03 - Refrigerator Shelf Parts

04 - Freezer Liner Parts

05 - Air Flow Parts

06 - Refrigerator Door Parts

07 - Freezer Door Parts

08 - Unit Parts

09 - Control Parts

10 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Refrigerator Liner Parts 03 - Refrigerator Shelf Parts 04 - Freezer Liner Parts 05 - Air Flow Parts 06 - Refrigerator Door Parts 07 - Freezer Door Parts 08 - Unit Parts 09 - Control Parts 10 - Optional Parts (not Included)

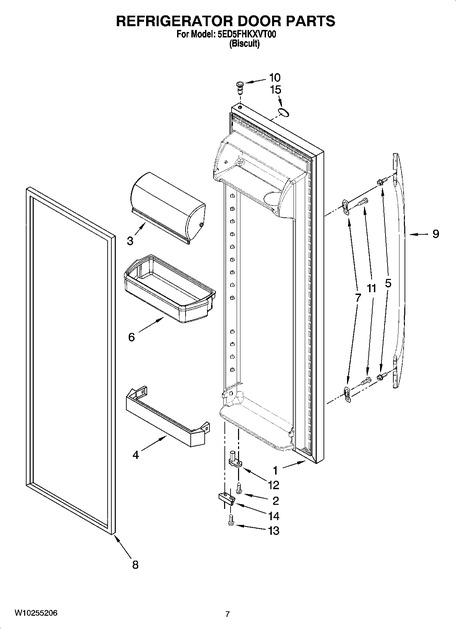

06 - Refrigerator Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	L2307095T	Refrigerator Door (includes Item 8) (biscuit)	$479.20 Special Order
2	WP3400012	Screw	$4.50 Special Order
3	WP2256101	Door, Compartment   (Replaces: 2256101)	$50.60  In-Stock Retail: $49.35
4	WP2309941	Trivet, Shelf   (Replaces: 2309941)	$41.30  In-Stock Retail: $40.21
5	WP489491	Screw (Replaces: 489491)	$4.50 Special Order
6	WPW10321304	Shelf Bin (3) (Replaces: 2304235)	$26.70  In-Stock Retail: $26.01
7	WP2255411	Clip (Replaces: 2255411)	$20.30  In-Stock Retail: $19.80
8	2159075	Door Gasket, Magnetic (service)	$214.70 Special Order
9	WPW10136232	Handle	$198.80 Special Order
10	WP2182181	Thimble, Top	$4.50 Special Order
11	8533920	Screw	$4.40 Special Order
12	WP2182179	Door Closer, Upper Cam (Replaces: 2182178)	$4.40  In-Stock Retail: $4.20
13	WP489483	Screw	$6.30 Special Order
14	WP2206629B	Bracket, Door Stop (chrome)	$22.10 Special Order
15	WP2213265	Nameplate	$49.80 Special Order
